205003041 Waters CAD Alliance System Integration Kit
ENVIRONMENT
- Waters Charged Aerosol Detector (CAD)
- Alliance HPLC System
- 2695 Separations Module
CONTENT
Waters CAD Alliance System Integration Kit, Part Number 205003041
|
Part Number |
Quantity |
Item |
Image |
Description/Location |
|
|
1 |
CONN SHELL 10POS MINI-COMBICON |
 |
I/O Connector |
|

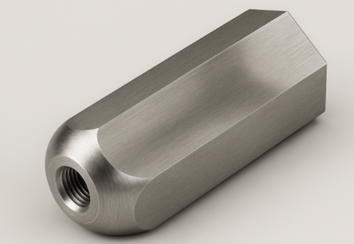

405021267 |
2 |
LUG, 0.800 LONG, MODULE ALIGNMENT |
 |
Alignment lugs for system stability |
|
410000760 |
4 |
FITTING, ONE-PIECE, 10-32 |
 |
Used to connect tubing |
|
|
144” |
TUBING, ETFE, .030 ID X .062 OD |
|
Use for both Divert Valve Waste (port 5) and Nebulizer waste port. Must be cut to length at install.
|
|
430007193 |
96” |
TUBING, 1/4"OD X 4.1MM ID, PTFE |
 |
Pneumatic tubing (Gas Inlet) |
|
430007218 |
96” |
TUBING, 3/8"OD X 6.5MM ID, PTFE |
 |
Pneumatic tubing (Gas Outlet) |
|
|
1 |
ASSY, CABLE, EVENT, 6 FT. |
 |
I/O Cable (Stop Flow connection) |
|
|
1 |
ETHERNET PATCH CORD, SHIELDED, 5 FT. |
 |
Ethernet Connection |
|
|
1 |
SCR, FLG-LESS COMPRESS, 1/4-28-1/16 I.D. |
 |
Use with WAT271143 to connect the Nebulizer waste port tubing |
|
|
2 |
FERRULE FLANGLESS W/LOCK RING |
 |
Use with WAT270993 to connect the Nebulizer waste port tubing |
|
|
1 |
PEEK TUB,.010X1/16"X60" |
 |
Detector inlet tubing (Port 6) |
