205003040 Waters CAD Arc HPLC System Integration Kit
ENVIRONMENT
- Waters Charged Aerosol Detector (CAD)
- Arc HPLC System
CONTENT
Waters CAD Arc HPLC System Integration Kit, Part Number 205003040
|
Part Number |
Quantity |
Item |
Image |
Description/Location |
|
|
1 |
CONN SHELL 10POS MINI-COMBICON |
 |
I/O Connector |
|
405016495 |
1 |
ADAPTER, BARBED |
 |
Fitting for leak management. Used with 430000525 to direct leaks to CH-A or CM-A/Aux |
|
405021267 |
2 |
LUG, 0.800 LONG, MODULE ALIGNMENT |
 |
Alignment lugs for system stability |
|
410000760 |
4 |
FITTING, ONE-PIECE, 10-32 |
 |
Used to connect tubing |
|
410001320 |
1 |
FITTING, 1/4 BARB X 18-27 NPT MALE ELBOW |
 |
Fitting for leak management |
|
430000314 |
1 |
TUBING, CONVOLUTED |
 |
Used in conjunction with 430001320 to connect the detector upper and lower drip trays for multi detector support |
|
430000525 |
0.8” |

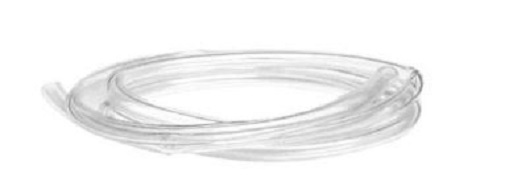

TUBING, .437 X .312, TYGON |
 |
Tube for leak management. Used with 405016495 to direct leaks to CH-A or CM-A/Aux |
|
|
72” |
TUBING, .375 OD X .250 ID, TYGON |
 |
Drip Tray Drain Line. |
|
|
144” |
TUBING, ETFE, .030 ID X .062 OD |
|
Use for both Divert Valve Waste (port 5) and Nebulizer waste port. Must be cut to length at install. |
|
430007193 |
96” |
TUBING, 1/4"OD X 4.1MM ID, PTFE |
 |
Pneumatic tubing (Gas Inlet) |
|
430007218 |
96” |
TUBING, 3/8"OD X 6.5MM ID, PTFE |
 |
Pneumatic tubing (Gas Outlet) |
|
|
1 |
ASSY, CABLE, EVENT, 6 FT. |
 |
I/O Cable (Stop Flow connection) |
|
|
1 |
ETHERNET PATCH CORD, SHIELDED, 5 FT. |
 |
Ethernet Connection |
|
|
1 |
SCR, FLG-LESS COMPRESS, 1/4-28-1/16 I.D. |
 |
Use with WAT271143 to connect the Nebulizer waste port tubing |
|
|
2 |
FERRULE FLANGLESS W/LOCK RING |
 |
Use with WAT270993 to connect the Nebulizer waste port tubing |
|
|
1 |
PEEK TUB,.010X1/16"X60” |
 |
Detector Inlet tubing (Port 6) |
