205003039 Waters CAD Arc System Integration Kit
ENVIRONMENT
- Waters Charged Aerosol Detector (CAD)
- ACQUITY Arc
- ACQUITY Arc Premier
CONTENT
Waters CAD Arc System Integration Kit, Part Number 205003039
|
Part Number |
Quantity |
Item |
Image |
Description/Location |
|
289010832 |
1 |

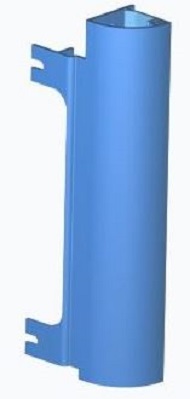

ASSY, TUBE GUIDE, DETECTOR |
 |
Solvent line guide |
|
|
1 |
CONN SHELL 10POS MINI-COMBICON |
 |
I/O Connector |
|
405021267 |
2 |
LUG, 0.800 LONG, MODULE ALIGNMENT |
 |
Alignment lugs for system stability |
|
410000760 |
1 |
FITTING, ONE-PIECE, 10-32 |
 |
Used to connect tubing |
|
410005503 |
1 |
FITTING, PLUG, 1/8-27 NPT |
 |
Auxillary drip tray plug (use with 415002819) |
|
|
1 |

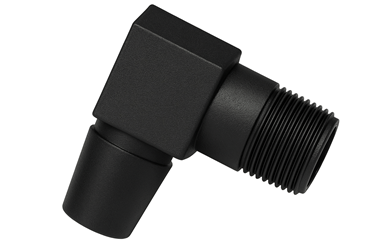

ELBOW, DRAIN, 1/8 NPT TO BARBED |
 |
Auxillary drip tray fitting (use with 415002819) |
|
415002819 |
1 |

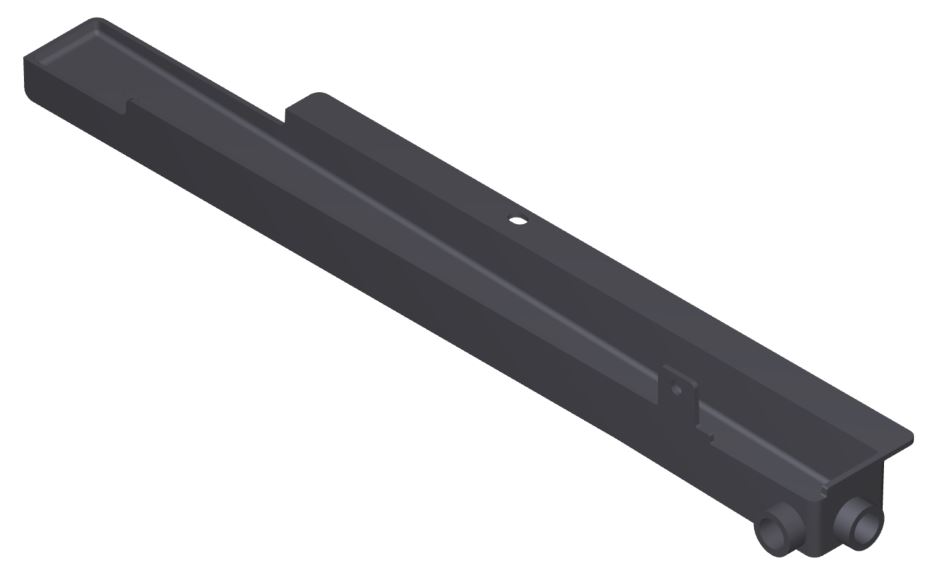

DRIP TRAY, AUXILIARY, DETECTOR |
 |
Auxiliary Detector Drip Tray for leak management |
|
WAT025249 |
1 |
RIVET, SNAP, .256 MAX PANEL |
 |
Auxiliary drip tray attachment hardware (use with 415002819) |
|
|
72” |

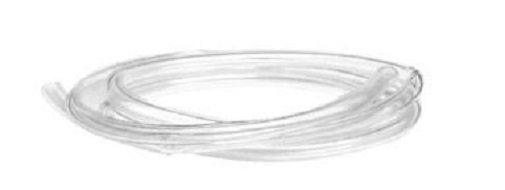

TUBING, .375 OD X .250 ID, TYGON |
 |
Drip Tray Drain Line. |
|
|
144” |
TUBING, ETFE, .030 ID X .062 OD |
 |
Use for both Divert Valve Waste (port 5) and Nebulizer waste port. Must be cut to length at install. |
|
430007193 |
96” |
TUBING, 1/4"OD X 4.1MM ID, PTFE |
 |
Pneumatic tubing (Gas Inlet) |
|
430007218 |
96” |
TUBING, 3/8"OD X 6.5MM ID, PTFE |
 |
Pneumatic tubing (Gas Outlet) |
|
|
1 |
ASSY, CABLE, EVENT, 6 FT. |
 |
I/O Cable (Stop Flow connection) |
|
|
1 |
ETHERNET PATCH CORD, SHIELDED, 5 FT. |
 |
Ethernet Connection |
|
|
1 |
SCR, FLG-LESS COMPRESS, 1/4-28-1/16 I.D. |
 |
Use with WAT271143 to connect the Nebulizer waste port tubing |
|
|
2 |
FERRULE FLANGLESS W/LOCK RING |
 |
Use with WAT270993 to connect the Nebulizer waste port tubing |
|
WAT416311 |
2 |
SCREW, M3.63 X 10 PLASTITE, HEXALOBULAR |
 |
Solvent line guide hardware (use with 289010832) |
