205003042 Waters CAD Allaince iS System Integration Kit
Article number: 341751
ENVIRONMENT
- Waters Charged Aerosol Detector (CAD)
- Alliance iS HPLC System
CONTENT
Waters CAD Allaince iS System Integration Kit, Part Number 205003042
|
Part Number |
Quantity |
Item |
Image |
Description/Location |
|
410000760 |
2 |
FITTING, ONE-PIECE, 10-32 |
 |
Used to connect tubing |
|
|
72” |

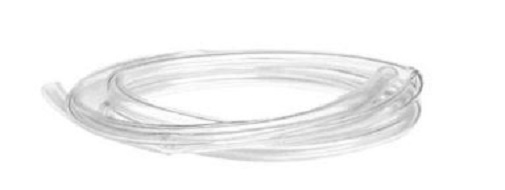

TUBING, .375 OD X .250 ID, TYGON |
 |
Drip Tray Drain Line |
|
|
144” |
TUBING, ETFE, .030 ID X .062 OD |
 |
Use for both Divert Valve Waste (port 5) and Nebulizer waste port. Must be cut to length at install. |
|
430007193 |
96” |
TUBING, 1/4"OD X 4.1MM ID, PTFE |
 |
Pneumatic tubing (Gas Inlet) |
|
430007218 |
96” |
TUBING, 3/8"OD X 6.5MM ID, PTFE |
 |
Pneumatic tubing (Gas Outlet) |
|
|
1 |
ETHERNET PATCH CORD, SHIELDED, 5 FT. |
 |
Ethernet Connection |
|
1 |
SCR, FLG-LESS COMPRESS, 1/4-28-1/16 I.D. |
 |
Use with WAT271143 to connect the Nebulizer waste port tubing |
|
|
|
2 |
FERRULE FLANGLESS W/LOCK RING |
 |
Use with WAT270993 to connect the Nebulizer waste port tubing |
