200002424 Waters ACQUITY UPLC Evaporative Light Scattering Detector Startup Kit
Article number: 262390
ENVIRONMENT
- ACQUITY UPLC ELS Detector
CONTENT
Waters ACQUITY UPLC Evaporative Light Scattering Detector Startup Kit, Part Number 200002424
| Part Number | Quantity | Item | Image | Description/Location |
|---|---|---|---|---|
|
330000163 |
2 |
Fuse 5A 250Vac 20x5mm F |
 |
Spare Fuses for Main Power Supply. |
|
289002567 |
2 |
Drain Tube Holder |
 |
Clips to Route Waste Line Down ACQUITY Stack. |
|
|
2 |
Connector Plug, 10 position |
 |
I/O Connector. |
|
410000532 |
1 |
Fitting, Tee 6mm Tube to 6mm Tube |
 |
Split from Nitrogen Generator to Mass Spectrometer and ELSD. |
|
410001686 |
1 |
Plastic Hose Clamp |
 |
Clamp to Secure Convoluted Tube to Siphon Waste. |
| 441000456 | 1 | Ethernet Patch Cord, Shielded 5-ft |  |
Communication Cable. |
|
|
1 |
Convoluted Tubing, 3/8” ID |
 |
Siphon Waste Line. |
|
|
1 |
PEEK Tubing, 6” x 0.004” ID |
 |
ELSD Inlet From Column. |
|
|
1 |
PEEK Tubing, 14” x 0.004” ID |
 |
ELSD Inlet From UV Detector. |
|
|
1 |

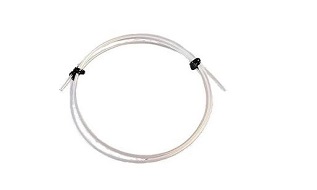

Tube, PTFE 6x4 5M |
 |
Pneumatic Inlet Tubing. |
|
700000958 |
1 |
Stud, 6-1/4 BSPT, Pilot Valve |
 |
For Nitrogen Generator. |
