200002545 Waters 2545 Binary Gradient Module Startup Kit

WAT270586

1

Kit, Seal Wash Adapter to Syringe

Assists in priming the Seal Wash Pump.

WAT271053

1

Syringe, Plastic

Used to Inject Mobile Phase (e.g. water/IPA) into the Inlet of the pump during initial startup to wet the Check Valves

289000858

1

Assy., Tool, Removal & Insertion, .280 Diameter Seal

Use to remove Plunger Seals from Pump Head and      the magnet is used to remove Rotary Vent Valve Seals.

330000102

2

Fuse 10 Amp 5x20mm Slo Blow

Spare Fuses.

410000697

4

Front Ferrule, .25 OD Tube

Spare Inlet Fittings.

410000698

4

Back Ferrule, .25 OD Tube

Spare Inlet Fittings.

415000878

1

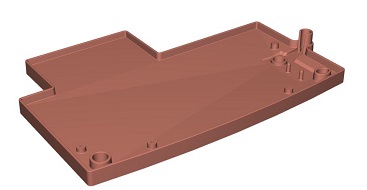

Tray, Top

Used for leak management with optional detector or pump

430000573

1

Assy., Tubes, ¼” Solvent Inlet

Connects Solvent Reservoirs to Inlet Manifolds.

430000574

2

Assy., Tube, System Outlet

Outlet for 2545 or Waste Line for 2545.

430000576

1

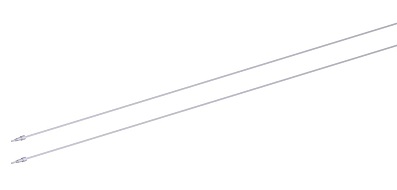

Assy., Tubing, Seal Wash Inlet

Connects Pump Seal Wash Reservoirs to Seal Wash Pump Inlets.

430000613

1

Syringe Adapter

Used to connect Syringe to the Inlet Manifold.

430001022

2

Tubing, .38 OD x .25 ID, Tygon 2075 60 inches

Drain line.

430001856

150”

Tubing, 3/16 OD x 1/16 ID Tygon 2275- 2 lengths 75” ea.

Connect to back hole (barbed fitting) on Pump Head that is opposite Seal Wash Pump (75 in/pump).

441000372

1

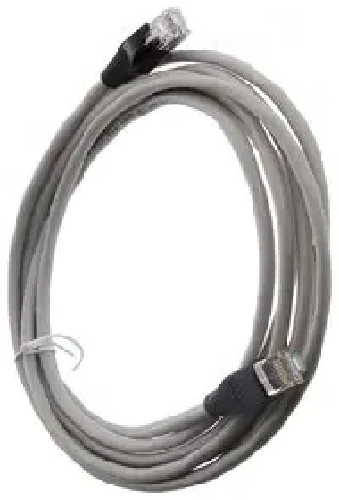

Ethernet Patch Chord, Shielded, 10 ft. Long

Connects 2545 to Ethernet switch.

441000373

1

Assy., Cable, Event, 6 ft. Long

Used to connect 2545 to Mass Spectrometer.

600000451

1

Grease Packet, AV 2

Lubricates Plunger & Piston Joint.

605000106

1

Forceps, Reinforced Nylon

Used to remove Outlet Check Valve Housing.

700005116

1

MARKER SET, 1/4 TUBING, QGM, PKG 2

Used to identify the tubing at the solvent bottle.
