200001290 Waters System Fluidics Organizer Startup Kit List
ENVIRONMENT
- System Fluidics Organizer
CONTENT
Waters System Fluidics Organizer Startup Kit List, Part Number 200001290
| Part Number | Quantity | Item | Image | Description/Location |
|---|---|---|---|---|
|
|
1 |
Cable, Event |
 |
Starts Contact Closure. |
|
WAT034340 |
2 |
Terminal Strip Plug 9 Pos |
 |
Terminal Spade Connector. |
|
|
1 |
Detector Signal Cable |
 |
Shielded Detector Cable. |
|
1 |
Cable, IEEE-488, 6.6ft |
 |
IEEE Cable. |
|
|
|
2 |
Assy., Clamp, Molded, Large Column |
 |
Prep Clip for Longer Columns. |
|
|
2 |
Fuse, 3.15A, 250V, 5x20mm Fast-acting UL |
 |
Spare Fuses. |
|
323000300 |
2 |
Conn. Cover RFI Shielding for Female GPIB |
 |
Connector to Protect against RF. |
|
400000848 |
2 |
Clip, Column Retainer |
 |
Used to Retain 30mm dia. Columns. |
|
405001415 |
2 |
Nut Plate, Column Clamp |
 |
Nut Plate for Prep Clip. |
|
410000419 |
2 |
Screw, M4 x 10, Sems |
 |
Screw for the Prep Clip. |
|
415000172 |
2 |
Screw, Compression, 10-32, Pkg. 10 |
 |
Rheodyne Peek Fittings. |
|
|
2 |
Clip Column |
 |
Set of Analytical Column Clips. |
|

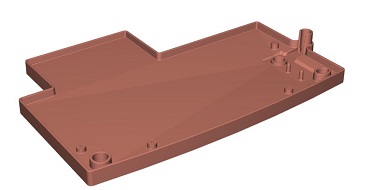

415000878 |
1 |
Tray, Top |
 |
Used for Leak Management with Optional Detector or Pump |
|
430001022 |
2 |
Tubing, .375 x .25 Tygon 2975 |
 |
Drain Line attaches to Fitting on the Drip Tray to Direct Leaks. |
|
|
2 |
Assy., Cable, Event, 6ft. |
 |
Contact Closure for Signal to Insulary Modules. |
|
441000470 |
3 |
Assy., Cable, PCM to Pump |
 |
Nine Pin Connector Cable. |
