200000510 Arc HPLC Waste Kit
Article number: 284281
ENVIRONMENT
- Arc HPLC System
CONTENT
Arc HPLC Waste Kit, Part Number 200000510
| Part Number | Quantity | Item | Image | Description/Location |
|---|---|---|---|---|
|
|
1 |

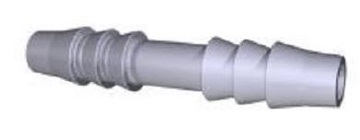

STRAIGHT CON, BARBED, 1/4" ID, NYLON |
 |
Condensate waste adapter |
|
289003370 |
1 |
ASSY, ADAPTER, FITTING, TUBE |
 |
Insert into the pump lower drip tray cover front drain port. |
|
|
1 |
TUBE, CONVOLUTED, 1/4 ID X 6.0 L, CUFFED |
 |
Condensate waste Sample Manager |
|
|
1 |
TUBE, CONVOLUTED, 1/4 ID X 9.75L, CUFFED |
 |
Process waste Sample Manager |
|
|
1 |
Y-CONNECTOR, BARBED, 1/4" ID TUBE |
 |
To connect the waste lines |
|
|
180" |

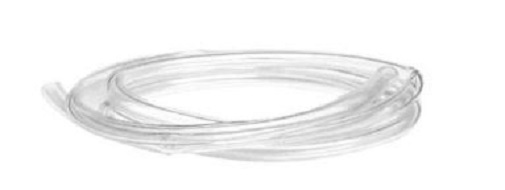

TUBING, .375 OD X .250 ID, TYGON |
 |
Drain tube for bottle tray. |
