200000509 Arc HPLC Tubing Kit
ENVIRONMENT
- Arc HPLC System
CONTENT
Arc HPLC Tubing Kit, Part Number 200000509
| Part Number | Quantity | Item | Image | Description/Location |
|---|---|---|---|---|
|
|
1 |

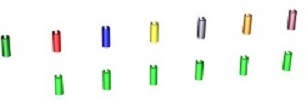

MARKER SET, TUBING, .112-.138 ID, QSM |
 |
For identifying solvent lines |
|
|
1 |

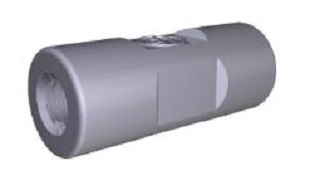

ASSY, TUBE, SOLVENT FILTER ADAPTER |
 |
Used with 410005796 and 430004754 to plumb sample manager purge solvent from bottle to metering syringe valve |
|
|
1 |
ADAPTER, FEM 1/4-28 FB TO FEM 10-32 CONE |
 |
Used with 430004754 and 430004756 to plumb sample manager purge solvent from bottle to metering syringe valve |
| 430004754 | 1 | ASSY, TUBE, PEEK, .062 X .040 X 60 |  |
Used with 410005796 and 430004756 to plumb sample manager purge solvent from bottle to metering syringe valve |
|
|
1 |
TUBE, SST, .062 X .010 X 19L |
 |
Connects QSM vent / dual mixer valve port 6 to sample manager inject valve port 5 |
|
|
1 |
PLUG, PIN, HIGH PRESSURE |
 |
To perform system level leak test with union 405003460 and to aid when cleaning the detector flow cells. |
|
|
1 |
Union, .020 ID, V-Detail |
 |
Used to join Acquity UPLC tube assemblies. |
|
|
1 |
BOTTLE CAPS, 4 LTR, 4 PKG |
 |
Bottle caps for reservoir management. |
|
|
1 |
BOTTLE CAPS, 1 LTR, 4 PKG |
 |
Bottle caps for reservoir management. |
