200000489 Waters Arc Premier Waste Startup Kit

289003370

1

Assy, adapter, fitting, tube

Insert into the pump lower drip tray cover front drain port.  Use with 430001846 tube

410000704

2

Y-connector, barbed, 1/4" ID tube

To connect the waste lines

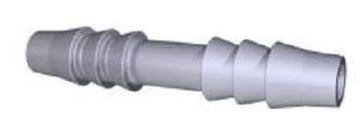

410005717

1

Straight con, barbed, 1/4" ID, Nylon

Condensate waste adapter

415001552

1

Curtain, fluidics drip tray

Install onto front of fluidics drip tray

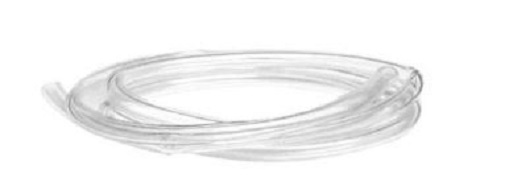

430000604

180"

Tubing, .375 OD x .250 ID, Tygon

Drain tube for bottle tray

430001846

1

Tube, Convoluted, 1/4 ID, cuffed ends

Connect into SM drain fitting and route to adapter fitting on BSM lower drip tray cover. Stretch cuff ID if necessary.

430004715

1

Tube, Convoluted, 1/4 ID X 6.0 L, Cuffed

Condensate waste Sample Manager

430004736

1

Tube, Convoluted, 1/4 ID X 9.75L, Cuffed

Process waste Sample Manager
