200000488 Waters Arc Premier Tubing Startup Kit
ENVIRONMENT
- ACQUITY Arc Premier
CONTENT
Waters Arc Premier Tubing Startup Kit, Part Number 200000488
| Part Number | Quantity | Item | Image | Description/Location |
|---|---|---|---|---|
|
|
2 |
PEEK tub, .010 x 1/16"x 60" |
 |
Used to bypass the Sample Manager and Column Manager for flushing |
|
|
1 |
Bottle caps, 4 ltr, 4 pkg |
 |
Bottle caps for reservoir management |
|
|
1 |
Bottle caps, 1 ltr, 4 pkg |
 |
Bottle caps for reservoir management |
|
|
1 |
Plug, pin, high pressure |
 |
To perform system level leak test with union 405003460 and to aid when cleaning the detector flow cells |
|
405011424 |
1 |
Union, body .010 ID V-detail titanium |
 |
Used to join ACQUITY UPLC tube assemblies |
|
410000760 |
6 |
Fitting, one-piece, 10-32 |
 |
2 pcs Used with the 60” piece of tubing WAT022996. 2 pcs Used with a length of cut tubing 700003612 |
|
|

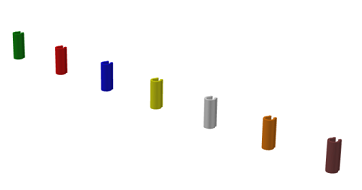

1 |
Marker Set, Tubing, .112-.138 ID, ACQ |
 |
For Solvent Lines |
|
|

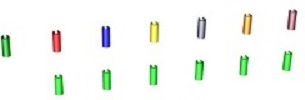

1 |
Marker Set, Tubing, .112-.138 ID, QSM |
 |
For identifying solvent lines |
|
|

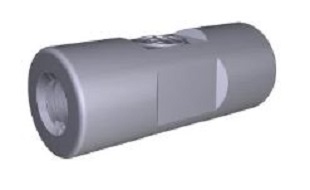

1 |
Adapter, FEM 1/4-28 FB TO FEM 10-32 Cone |
 |
Adapt to peek purge line |
|
|
1 |
Assy, Tube, PEEK, .062 X .040 X 60 |
 |
Purge solvent line |
|
430005183 |
1 |
Assy, Tube, MP35N, .062 X .010 X 19L |
 |
Pump outlet |
|
430005226 |
1 |
Assy, Tube, Solvent Filter Adapter, Bio |
 |
Solvent filter adapter |
|
|
1 |
Tubing, PEEK, .062OD X .005 ID Red, 60" |
 |
Connects Column outlet or Optical Detector outlet to other Detectors. Use with (2) one-piece fitting 410000760 |
