200000490 Waters Arc Premier Accessories Startup Kit
ENVIRONMENT
CONTENT
Waters Arc Premier Accessories Startup Kit, Part Number 200000490
| Part Number | Quantity | Item | Image | Description/Location |
|---|---|---|---|---|
|
|
1 |
Syringe,plastic, 30 ml |
 |
Used to pull Mobile Phase (e.g. water/IPA) through the Inlet of the Pump during Initial Startup to wet the Check Valves |
|
|
1 |
Kit, column support clip |
 |
Supports columns in heater trough |
|

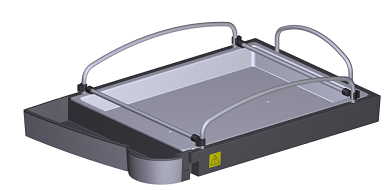

289015321 |
1 |
Assy, Bottle Tray, w/Alignment, Premier |
 |
To Secure bottles |
|
|
4 |
Scr,Comp,10-32,LG 1/4 HEX,304SS GLD PLT |
 |
Spare 10-32 Compression Screws |
|
|
2 |
Holder, 48 well, 2ml vial |
 |
Holds 2mL sample vials |
|
405013532 |
1 |
Calibration pin, RZZ mechanism |
 |
Used for orienting sample tray relative to datum base and calibrating position of Needle Carriage. Calibrate Rotary Tray (console needs to be in “Service Mode” to access this function). Pin is stored in designated pocket in door insulation after installation of SM. |
|
405024196 |
1 |
Fitting, Luer, 0.127 |
 |
For priming syringe |
|
|
4 |
Ferrule, set, .062, two-piece |
 |
Spare Two-Piece Ferrules |
|
410001380 |
1 |
Adapter, female luer to barbed, .030 ID |
 |
Assists in Priming Seal Wash Outlet Tubing |
|
|
4" |
Tubing, .156 OD x .031 ID, pharmed |
 |
Assists in Priming Pump |
|
|
2 |
Label, 48 well, 2ml vial, open access |
 |
Used to Identify vial positions in MassLynx |
