200000456 Waters ACQUITY UPLC M-Class HDX-2 Automation with ZenFit Technology Startup Kit

WAT022996

1

PEEK tubing,.010 x 1/16" x 60"

Connects valve 1 port 2 to injection port union

WAT410410

2

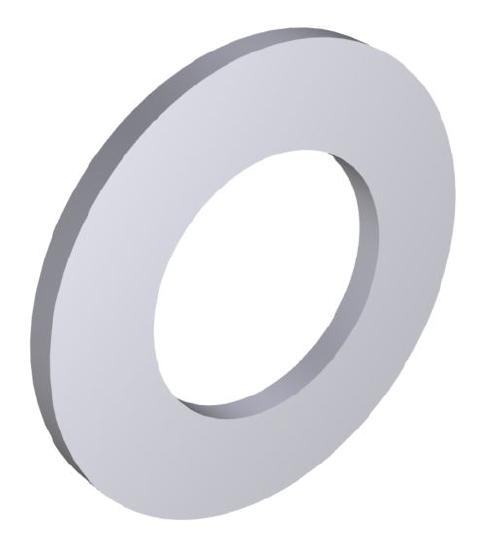

Washer, plain, SST, M4 x M8

Hardware for HDX manager feet

WAT410440

2

Washer, lock, split, M4 x M7.6 SST

Hardware for HDX manager feet

186001420

1

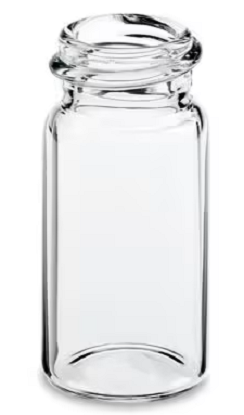

Vial, 22 x 45mm with 20-400 screw top, 100pk

Vials for sample prep

186004632

1

Cap, 20-400 with Cross Slit Septa, 100/pk

Vial caps for sample prep

289007977

1

Assy, bottle tray, NANO

Solvent management tray

289011122

2

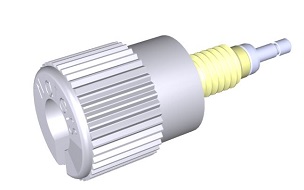

Plug, finger tight fitting

Plug used for leak testing and flow controller zeroing

289011562

3

Adapter, F-M, finger tight fitting

Used on µBSM and ASM  to convert Fluidic outlets to ZenFit connection technology compatible

405011424

2

Union, body .010 ID v-detail titanium

1) Connects trap column (male port) to capillary tube

2) Bypasses pepsin column when not in use

405021078

2

Foot, HDX

Replacement foot for HDX manager

405021104

2

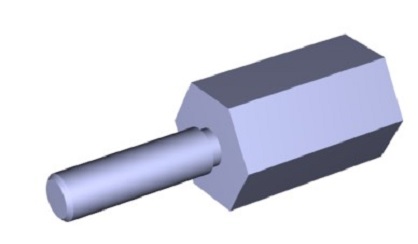

Standoff, M4-F/M 4-M X .62 LG

Hardware for HDX manager feet

410000868

2

Plug, 1/4-28, teflon

To plug unused degasser ports

410006443

2

Screw, thumb, wing head

Hardware for HDX manager feet

415001980

12

Divider, modular solvent bucket

Used to divide solvent bottles within bottle tray

430000604

60”

Tubing, .375 OD x .250 ID, tygon 2075

Waste outlet tubing

430002419

60”

Tubing, polyurethane, 3.2mm OD x 2 mm ID

Hooks from HDX outlet to robot chiller module

430003111

3000 mm

Tubing, FEP, 6mm OD x 4mm ID

From 6mm tee to inlet of HDX module

430004948

3

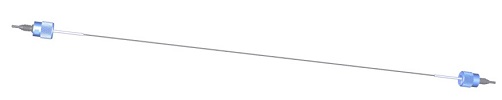

Assy, capillary & fittings, 75um x 14 in

1) Connects valve 1 port 6 to digestion column

2) Connects digestion column to valve 2 port 2

3) Spare

430005015

3

Assy, capillary & fittings, 75um x 72in

1) Tube 1 and 2 connect pumps to HDX manager

2) Spare

430005032

2

Assy, capillary & fittings, 75um x 14 in

1) Connects valve 2 port 3 to HDX manifold waste out (lower left)

2) Connects HDX manifold ASM inlet to valve 1 port 5

430005034

5

Assy, capillary & fittings, 75um x 10 in

1) Connect HDX manifold BSM inlet to valve 2 port 5
2) Connects trap column  to valve 2 port 4
3) Connects valve 2 port 6 to analytical column

4) Connects valve 2 port 1 to trap column via union

5) Spare

441000455

1

Ethernet patch cord, shielded,   3 ft.

Used to connect LEAP to HDX manager

441000456

2

Ethernet patch cord, shielded,   5 ft.

Used to connect ASM and BSM to HDX manager

441001210

1

Assy, cable, automation, HDX

From LEAP to HDX Manager rear panel

442000132

4

Jumper cord, 1 meter

Power cords to connect instruments on HDX-2 shelf to the HDX-2 shelf power strip

700002499

1

Fitting, tee, 6mm tube to 6mm tube

Nitrogen line to HDX and MS

700002524

1

Fitting, one-piece, 10-32, pkg 10

Plumbing PEEK lines

700003907

3

Fitting, plastic ¼ barbed tee

Waste line tubing connections
