200000458 Waters ACQUITY Arc Bio SM FTN-R Startup Kit

WAT271053

1

Syringe,plastic, 30 ml

Used with 405024196 to assist in dry prime of wash solvent if necessary

289003370

1

Assy, adapter, fitting, tube

Interfaces sample manager process waste tube with QSM waste tray

323000823

1

Connector rectangular mini-Combicon popu

Connects to the 6 pin event cable

405003743

2

Holder, 48 well, 2ml vial

Holds 2mL sample vials

405013532

1

Calibration pin, RZZ mechanism

Used for orienting sample tray relative to datum base and calibrating position of Needle Carriage. Calibrate Rotary Tray (console needs to be in “Service Mode” to access this function). Pin is stored in designated pocket in door insulation after installation of SM.

405024196

1

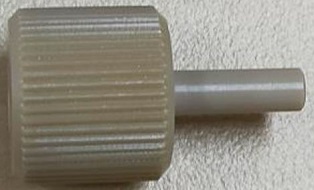

Fitting, luer, 0.127

Used with WAT271053 to assist in dry prime of wash solvent if necessary

410005717

1

Straight con, barbed, 1/4" id, nylon

Used with 430004716 and 430000604 to connect condensate waste to a discrete waste container

410005796

1

Adapter, fem 1/4-28 fb to fem 10-32 cone

Used with 430004754 and 430005226 to  plumb sample manager purge solvent from bottle to metering syringe valve

430000604

120”

Tubing, .375 od x .250 id, tygon 2075

System drain tubing

430004715

1

Tube, convoluted, 1/4 id x 6.0L cuffed

Connects condensate drain to discrete waste along with 410005717 and 430000604

430004736

1

Tube, convoluted, 1/4 id x 9.75L, cuffed

Connects sample manager process waste to QSMr waste tray

430004754

1

Assy, tube, PEEK, .062 x .040 x 60

Used with 410005796 and 430005226 to  plumb sample manager purge solvent from bottle to metering syringe valve

430005183

1

Assy, tube, MP35N, .062 x .010 x 19L

Connects QSM vent / dual mixer valve port 6 to sample manager inject valve port 5

430005226

1

Assy, tube, solvent filter adapter

Used with 410005796 and 430004754 to plumb sample manager purge solvent from bottle to metering syringe valve
