200000450 Waters ACQUITY Arc 2424 Detector Startup Kit
ENVIRONMENT
- ACQUITY Arc
- 2424 Evaporative Light Scattering Detector
CONTENT
Waters ACQUITY Arc 2424 Detector Startup Kit, Part Number 200000450
| Part Number | Quantity | Item | Image | Description/Location |
|---|---|---|---|---|
|
WAT025249 |
1 |
Rivet, snap, .256 max panel |
 |
Instrument drip tray attachment hardware |
|
WAT027033 |
3 |
Cable tie miniature |
 |
Cable ties for drain tubing |
|
WAT042173 |
3 |
Cable, mount, adh., nylon |
 |
Cable tie mounts for drain tubing |
|

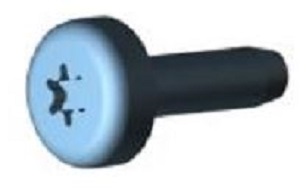

WAT416311 |
2 |
Screw, M3.63 X 10 plastite, hexalobular |
 |
Tube guide hardware |
|
|
1 |
Assembly, guide tube, detector |
 |
Tube guide for system tube routing |
|
|
2 |
Conn plug 10 pos 3.81mm pitch mini-combi |
 |
I/O Connector |
|
330000163 |
2 |
Fuse 5A 250Vac 20x5mm F |
 |
Spare fuses |
|
405019245 |
2 |
Lug, 0.720 long, module alignment |
 |
Interlocking lugs for system stability |
|
410000532 |
1 |
Fitting, tee, 6mm tube to 6mm tube |
 |
Split from Nitrogen generator to MS and ELS |
|
410001686 |
1 |
Clamp hose plastic id .404 |
 |
Plastic hose clamp for siphon waste tubing |
|
410005503 |
1 |
Fitting, plug, 1/8-27 npt |
 |
Instrument drip tray plug |
|
|
1 |
Elbow, drain, 1/8 npt to barbed |
 |
Instrument drip tray fitting |
|

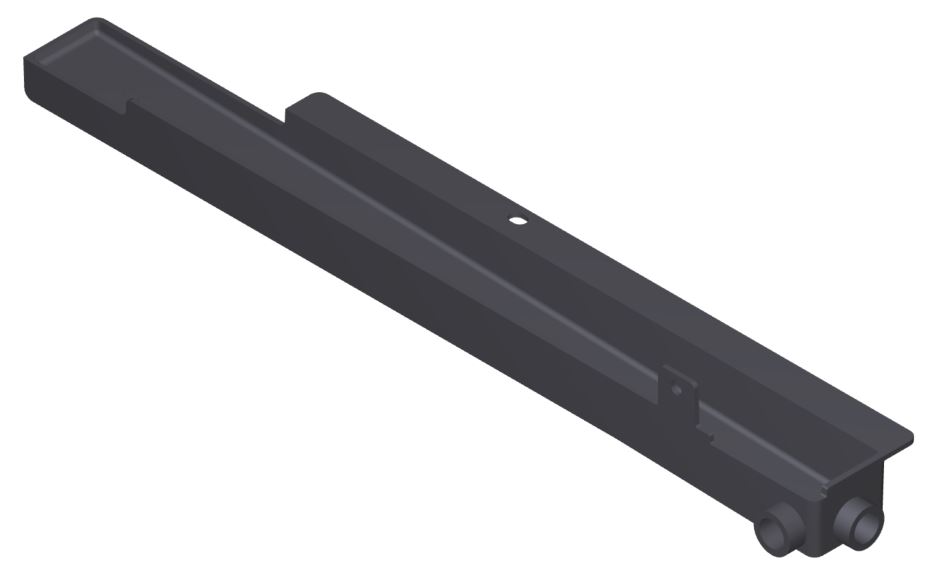

415002819 |
1 |
Drip tray, auxiliary, detector |
 |
Instrument drip tray for leak management |
|
|
1 |
Tubing, 3/8 dia convoluted |
 |
Siphon waste tubing |
|
|
1 |
Ethernet patch cord, shielded, 5 ft. |
 |
Connects detector to sample manager Ethernet switch |
|
|
1 |
Tube PTFE 6x4 5M |
 |
Pneumatic inlet tubing |
|
700000958 |
1 |
Stud 6-1/4 BSPT,Pilot Valve |
 |
Nitrogen generator fitting |
