200000449 Waters ACQUITY Arc 2414 Detector Startup Kit
ENVIRONMENT
- ACQUITY Arc
- 2414 Refractive Index Detector
CONTENT
Waters ACQUITY Arc 2414 Detector Startup Kit, Part Number 200000449
| Part Number | Quantity | Item | Image | Description/Location |
|---|---|---|---|---|
|
WAT025249 |
1 |
Rivet, snap, .256 max panel |
 |
Instrument drip tray attachment hardware |
|
WAT051053 |
2 |
Tube TFE .058X.080X10 FT. |
 |
Connects 2414 tube outlets to waste buckets |
|

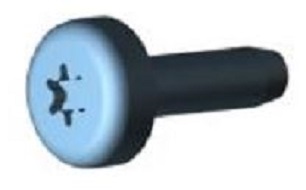

WAT416311 |
2 |
Screw, M3.63 X 10 plastite, hexalobular |
 |
Tube guide hardware |
|
|
1 |
Assembly, guide tube, detector |
 |
Tube guide for system tube routing |
|
|
2 |
Conn header 13 pos pcb mount mini-combic |
 |
I/O Connector |
|
|
2 |
Fuse,3.15a,250v,5x20mm fast-acting ul |
 |
Spare fuses |
|
405019245 |
2 |
Lug, 0.720 long, module alignment |
 |
Interlocking lugs for system stability |
|
410005503 |
1 |
Fitting, plug, 1/8-27 npt |
 |
Instrument drip tray plug |
|
|
1 |
Elbow, drain, 1/8 npt to barbed |
 |
Instrument drip tray fitting |
|
415002819 |
1 |
Drip tray, auxiliary, detector |
 |
Instrument drip tray for leak management |
|
|
1 |
Ethernet patch cord, shielded, 5 ft. |
 |
Connects detector to sample manager ethernet switch |
