ACQUITY H-Class QSM pressure drops - WKB9737

Article number: 9737

SYMPTOMS

  • Pressure remains stable using each channel individually
  • When mixing several channels, C/D ratio increases, until pressure drops

ENVIRONMENT

  • ACQUITY UPLC H-Class
  • ACQUITY UPLC H-Class Bio
  • ACQUITY UPLC H-Class Quaternary Solvent Manager (QSM)

CAUSE

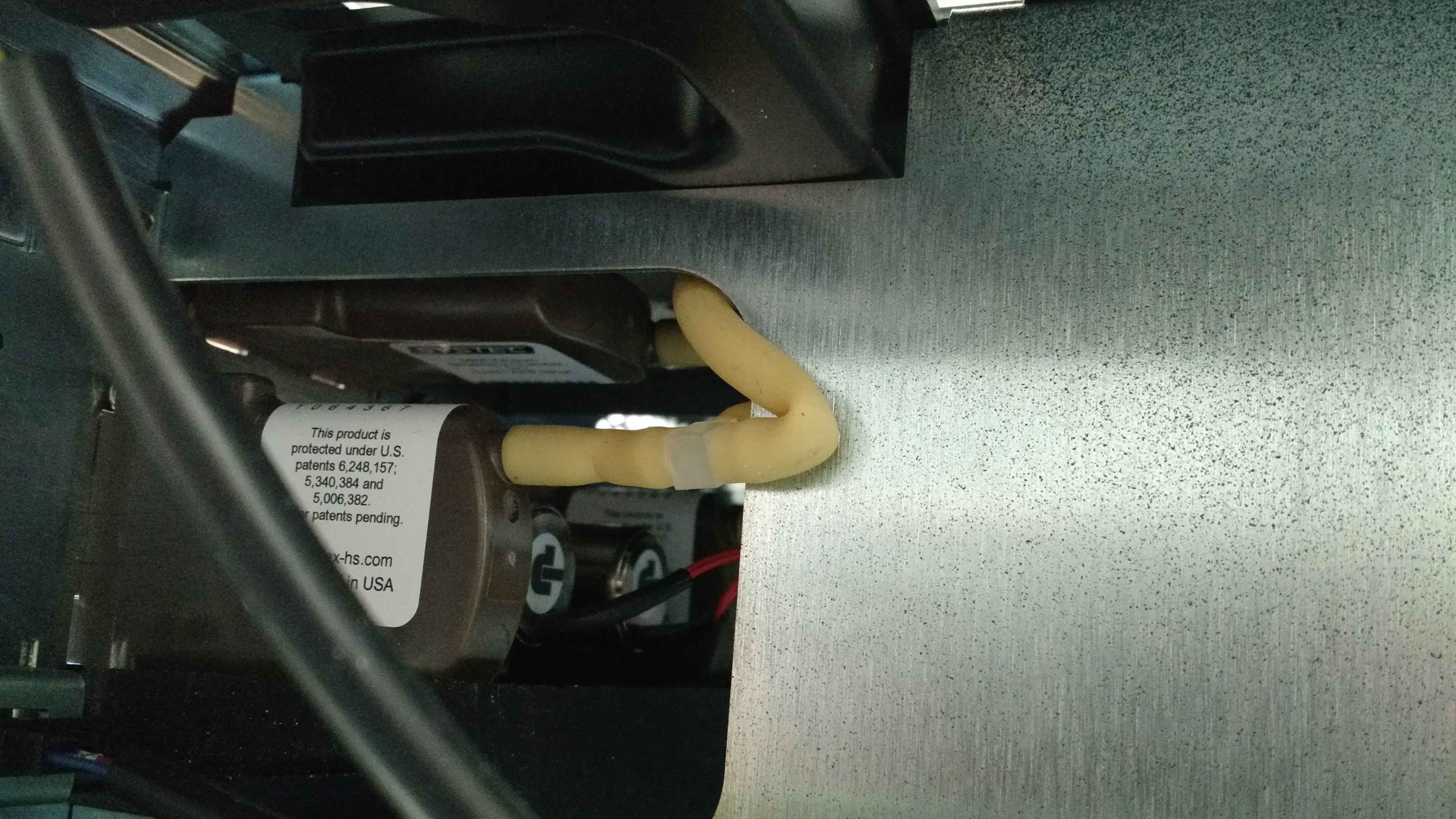

Kink or blockage of degasser tubing

FIX or WORKAROUND

  1. Inspect the degasser tubing.
  2. Reroute the tubing as necessary.

ADDITIONAL INFORMATION

See service note: QSM, Bio QSM: Ensure degasser vacuum tubing is kink free. Causes intermittent peak shifts and pressure dropouts.

Other articles related to this issue:

  1. High pressure fluctuations on ACQUITY H-Class QSM - WKB55705
  2. Pressure fluctuations on ACQUITY UPLC H-Class QSM after PM - WKB28335
  3. Pressure fluctuations on ACQUITY H-Class QSM - WKB19400
  4. Pressure fluctuations on ACQUITY UPLC H-Class QSM - WKB21289
  5. Pressure fluctuation on ACQUITY solvent manager - WKB21265
