Which battery is needed for a 2998 detector? - WKB86777

ENVIRONMENT

• 2998 Photodiode Array (PDA) Detector

ANSWER

There are two types of batteries used in the 2998 PDA, depending on the date of manufacture and previous repairs.

• WAT080443 - Battery, 3V Lithium (coin type)

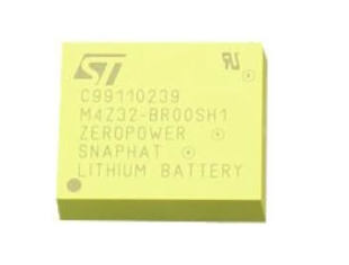

• 700001834 - Battery, 3V Zeropower, Snaphat (yellow square) The Snaphat battery 700001834 is obsolete and no longer available. That CPU board can be replaced with a later version using a different battery. To replace the board contact your local service organization.

ADDITIONAL INFORMATION

Use WAT080443 for both the current 3V CCPU AHCT board part 700005763 and the discontinued 3V CCPU part 700005155.
