In MassLynx, how do you measure the mass difference between two centroided peaks? - WKB21460

Article number: 21460

ENVIRONMENT

  • MassLynx 4.1 SCN 884

ANSWER

With the mouse, left-click on a peak of interest in the Spectrum window. Then, while still holding the the left mouse button down, drag to the other peak. The mass difference between those two points is displayed in the bottom left-hand corner of the Spectrum window.

mass difference.png

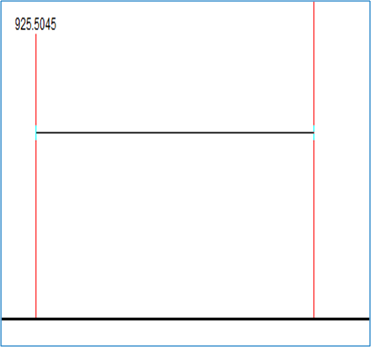

As you click and drag between points in the spectrum, a black line appears showing where the start and end points of measurement are. If you're on a peak, the end marker will turn a lighter shade of cyan.

zoom while on peaks.png
