In the MassLynx Chromatogram window, how do you show the integrated peak list? - WKB13136

Article number: 13136

OBJECTIVE or GOAL

Get % Area on integrated peaks to appear on the chromatogram.

ENVIRONMENT

  • MassLynx 4.1

PROCEDURE

  1. In the Chromatogram window, after integration is complete, go to the "Display" menu.
  2. Select the "View..." option.
  3. A Chromatogram Display View window appears. Under the "Style" section, enable the "Peak List" choice.

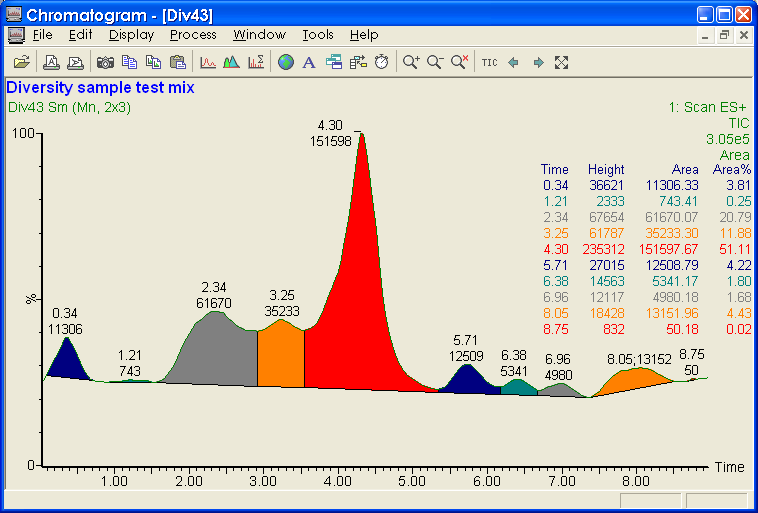

  4. The peak list table appears. The examples below show the same integrated chromatogram with and without the peak list enabled.integrated chromatogram.pngintegrated chromatogram2.png

ADDITIONAL INFORMATION

Note: In The Chromatogram Display View window, if Component Table is also turned on, the Peak List does not display.
