205000324 Waters 1525 to 1525EF Conversion Kit
ENVIRONMENT
- 1525 Binary HPLC Pump Extended Flow (EF)
CONTENT
Waters 1525 to 1525EF Conversion Kit, Part Number 205000324
| Part Number | Quantity | Item | Image | Description/Location |
|---|---|---|---|---|
|
|
1 |
Assy., Single Stage Mixer |
 |
Large Volume Mixer to be used with Extended Flow Pump Heads. |
|
|
2 |
515 Extended Flow Pkg. |
 |
Extended Flow Heads. |
|
205000196 |
2 |
Kit, Seal, 1525EF |
 |
Spare Pump Seals. |
|
289001372 |
1 |
Tool, Seal Insertion |
 |
Used to Install Seals on Pump Heads. |
|

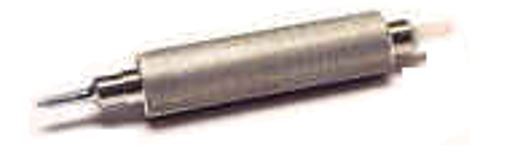

289001375 |
1 |
Tool, Seal Extraction |
 |
Used to Remove Seals on Pump Heads. |
|
|
1 |
Screw, Compression, Gold, 5 Pkg. |
 |
Part of Eluent Supply Line. |
|
|
1 |
Ferrule, Two Piece, .062, 5 Pkg. |
 |
Part of Eluent Supply Line. |
|
|
1 |
Tube Assy., Tee to Transducer |
 |
Required larger diameter Tubing for use between the Tee and the Transducer. |
|
|
1 |
Tube Assy., Transducer to Mixer |
 |
Required larger diameter Tubing for use between the Transducer and the Mixer. |
|
|
1 |
Tube Assy., Mixer to Reference Valve |
 |
Required larger diameter Tubing for use between the Mixer and the Reference Valve. |
|
|
1 |
Tube Assy., Reference Valve to Waste |
 |
Required larger diameter Tubing for use between the Reference Valve and Waste. |
|

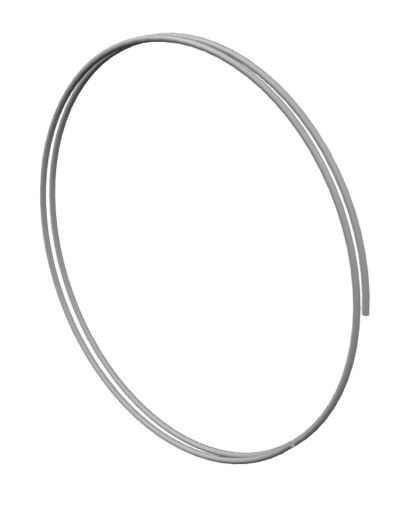

430001488 |
1 |
Tube, .062 OD x .020 ID, SS |
 |
Outlet Tubing used for Connecting to the Sample Manager. |
|
430001496 |
1 |
Tube Assy., Transducer to Reference Valve |
 |
Required larger diameter Tubing for use between the Transducer and the Reference Valve. |
