205000145 Waters UV Fraction Manager Kit

WAT055820

2

Screw, M4, Gray, Phillips

Secures the shield to the UV Fraction Manager.

WAT089801

1

0.040 Union

Connects T107 or T107 HF and prep flow cell.

WAT097332

1

0.020 Union

Connects T103 and analytical flow cell.

WAT410400

2

Nut, M4

Secures the shield to the UV Fraction Manager.

289000836

1

Assy, UV Fraction Manager

UV Fraction Manager.

400000803

1

Bracket, Hanger

For systems without Column Fluidics Organizer

using Waters 2487 or 2996 detectors.

405001698

1

Shield

Must be installed on the UV Fraction Manager using The 2 screws and nuts provided.

410000706

4

Foot, Adhesive Backed, .81 Sq. X

For free-standing installation; horizontal orientation.

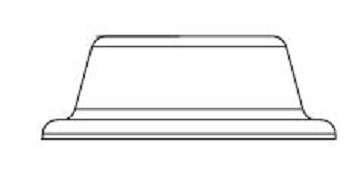

410000710

1

Foot, Adhesive Backed, 1.88 Dia.

For free-standing installation; vertical orientation.

410000760

2

Fitting, One-piece, 10-32

Used for connecting the UV Fraction manager

to the Fraction Collector Inlet Tube.

(This fitting is also supplied with the 2767 product)

430000455

1

Assy, Tube, 2767 Analytical

Injector to Analytical Column Inlet

T101

FROM: 2767 Left Injector (Analytical)

TO: Analytical Column Inlet

430000457

1

Assy, Tube, 2767 Prep Injector to Prep Column Inlet

T105HF

FROM: 2767 Right Injector (Prep-Scale)

TO: Prep Column Inlet

(For flow rates above 100 mL/min)

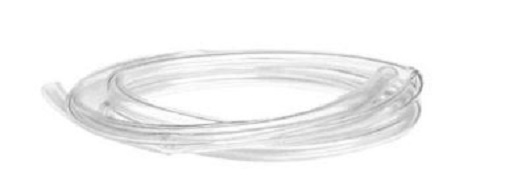

430000604

60 inches

Tubing, .375 x .25, Tygon 2075

Drain line.

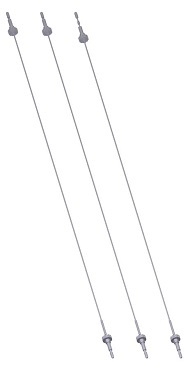

430000708

1

PEEK Tubing, Kit,

UV Fraction Manager

Includes the following tubing assemblies which may need to be cut at installation.

T103

FROM: Analytical Column Outlet

TO: Union (WAT097332)

T107

FROM: Prep Column Outlet

TO: Union (WAT089801)

T07HF

FROM: Prep Column Outlet

TO: Union (WAT089801)

(For flow rates above 100 mL/min)

430000710

1

Assy, Tube, Back Pressure Regulator to Delay Coil, LF

Low flow rate version of p/n 430000671

(for flow rates below 8 mL/min.)
