200000507 Arc HPLC Accessories Kit
ENVIRONMENT
- Arc HPLC System
CONTENT
Arc HPLC Accessories Kit, Part Number 200000507
| Part Number | Quantity | Item | Image | Description/Location |
|---|---|---|---|---|
|
410001380 |
1 |
ADAPTER, FEMALE LUER TO BARBED, .030 ID |
 |
Assists in Priming Seal Wash Outlet Tubing. |
|
|
4" |
TUBING, .156 OD X .031 ID, PHARMED |
 |
Assists in Priming Pump. |
|
|
2 |
HOLDER, 48 WELL, 2ML VIAL |
 |
Holds 2mL sample vials. |
|
405013532 |
1 |
CALIBRATION PIN, RZZ MECHANISM |
 |
Used for orienting sample tray relative to datum base and calibrating position of Needle Carriage. Calibrate Rotary Tray (console needs to be in “Service Mode” to access this function). Pin is stored in designated pocket in door insulation after installation of SM |
|
|
1 |
SYRINGE,PLASTIC, 30 ML |
 |
Used with 405024196 to assist in dry prime of wash solvent if necessary |
|

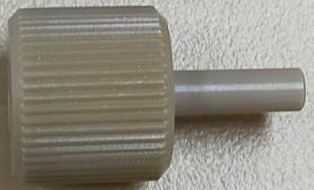

405024196 |
1 |
FITTING, LUER, 0.127 |
 |
Used with WAT271053 to assist in dry prime of wash solvent if necessary |
|
|
2 |
LABEL, 48 WELL, 2ml VIAL, OPEN ACCESS |
 |
Used to Identify vial positions in MassLynx. |
