200000305 Waters ACQUITY UPC2 System Startup Kit
ENVIRONMENT
- ACQUITY UPC2 System
CONTENT
Waters ACQUITY UPC2 System Startup Kit, Part Number 200000305
| Part Number | Quantity | Item | Image | Description/Location |
|---|---|---|---|---|
|
|
2 |
Reservoir Caps, 4 Liter Bottle |
 |
Bottle caps for reservoir management. |
|
|
2 |
Reservoir Caps, 1 Liter Bottle |
 |
Bottle caps for reservoir management. |
|
|
1 |
Tubing, TFE Clear, 25 Ft. |
 |
Used to conduct ACQUITY UPLC System startup. |
|
|
1 |
Column Clips, Column Heater, 10 Pack |
 |
Supports columns in heater trough. |
|
289003370 |
1 |
Assy. Adapter fitting tube |
 |
Insert into BSM lower drip tray cover front drain port. Use with 430001846 tube. |
|
|
1 |
Plug, pin, high pressure |
 |
To perform system level leak test with union 405003460 and to aid when cleaning the detector flow cells. |
|
|
1 |
Union, .020 ID, V-Detail |
 |
Used to join Acquity UPLC tube assemblies. |
|
|
2 |

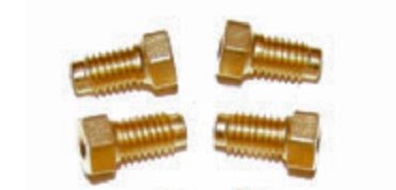

SCr, comp, 10-32, ¼ hex, 304SS, gold, plt. |
 |
Used with Acquity UPLC tube assemblies. |
|
|
1 |
Y-connector, Barbed, ¼” ID Tube |
 |
To connect the waste lines. |
|
|
2 |
Ferrule, Set, .062, 2-piece |
 |
Used with Acquity UPLC tube assemblies. |
|
|
120 |
Tubing 0.375od x 0.250 id x 120.0 in. long, Tygon |
 |
Drain tube for bottle tray. |
|
430001846 |
1 |
Tube, Convoluted, ¼ ID, Cuffed Ends. |
 |
Connect to SM drain fitting and route to adapter fitting on BSM lower drip tray cover. Stretch cuff ID if needed. |
|
430003333 |
1 |
Assy, Tube, Mixer Tee to Aux VLV P5 |
 |
Connect BSM outlet Tee to Sample Manager Port 5 |
|
430003336 |
1 |
Assy, Tube, Pump FLT to SFC MGR CO2 FLTR |
 |
Connect SFC Manager CO2 filter to BSM Inlet CO2 Filter. |
|
430003337 |
3 |
Assy, Tube, SFC Manager P2 to Waste
|
 |
Connect SFC Manager P2 to waste and P3 to Waste. Connect CM-A to waste. |
|
430003347 |
1 |
Assy, Tube, SFC Rupture Manifold to Waste |
 |
Connect SFC Manager CO2 rupture valve to exhaust. |
|
|
1 |
Assy, Tube, SFC SM to SF-MAN P4 |
 |
Connect SFC Sample Manager P5 to SF-Manager P4 |
|
|
1 |
Assy, Tube, SFC SM P6 to SFC Man P1 |
 |
Connect SFC SM port 6 to SFC Manager P1 |
|
|
1 |
Ethernet Patch Cord, Shielded |
 |
Connects Ethernet switch to workstation |
|
|
2 |

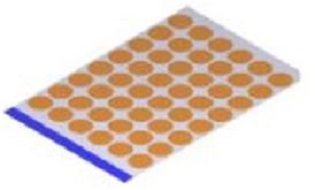

Label, 48 Well, 2ml Vial, Open Access |
 |
Used to identify vial positions in MassLynx |
