200000201 Waters PATROL UPLC Pilot Analyzer Cart, Startup Kit

WAT053853

1

Nut,Hex 1/4-28

Valve selector drip tray

WAT270503

1

Fitting, Plastic, 1/4-28

Valve selector drip tray

WAT410440

8

M4 lock washer

Monitor mounting hardware, CPU Bumper hardware

WAT411308

6

Screw, M3 X 8, Pan HD, Hexalobular, SST

Power strip mounting

WAT411410

4

M4 x 10 Pan Head

Monitor mounting hardware

WAT411412

4

M4x12 PH Torx

CPU Bumper hardware

205000499

1

Turret kit for CM

Column manager turret kit

289008506

2

Assy, Bottle Tray, Cart, Patrol

Solvent bottle assembly

400005723

1

Bracket, Holder, Bottle, Stud

Nalgene waste bottle holder

400005724

1

Bracket, Holder, Bottle, Slot

Nalgene waste bottle holder

400005725

1

Bracket, Holder, PC, Stud

CPU Bracket Assembly

400005726

1

Bracket, Holder, PC, Slot

CPU Bracket Assembly

400005741

1

Plate, Outlet, Cart, PATROL

Power strip bracket, rear of cart

400005937

1

Bracket, Support, Handle, Right

Cart handle, back of cart

400005938

1

Bracket, Support, Handle, Left

Cart handle, back of cart

400005960

1

Bracket, Bottle Holder, nano-Cart, 250ML

BSM waste bracket

400005985

1

Holder, Strip, Pwr, Top, Cart, Patrol

PDU top bracket

400005986

1

Holder, Strip, Pwr, Btm, Cart, Patrol

PDU bottom bracket

400006008

1

Holder, Selector, Valve, 6 Position

Valve selector assembly

400006009

1

Bracket, Selector, Valve, Clamp

Valve selector assembly

405015533

4

Holder, Feet, PSM, Cart, Patrol

Middle shelf feet for PSM

405015751

2

Bracket, Support, PC, Cart, PATROL

CPU bracket assembly

405015805

1

Handle, Cart, PATROL

Cart handle, back of cart

405016150

1

Bottle, Polyethylene, Rect, 250mL

Pump waste bottle

410001481

3

Outlet Strip 1 IEC IN 4 IEC Out 10A/250V

Outlet strip

410004372

1

JERRICAN, Flouinated, Naglene

Waste Container

410004454

8

M6 x 14 button head hex

Cart handle, PSM shelf feet

410004504

5

Knob, Four Arm, Phenolic, Threaded

Knob for adjustable sheet metal, multiple locations

410004514

1

Monitor Arm

Monitor arm, connects to frame, holds monitor

410004588

1

Strip, Pwr, 20A, 230VAC, 50Hz, 10 Outlet

Power distribution unit

410004638

4

9540K35, Bumper, Unthreaded Thru Hole

CPU bracket assembly

410004639

2

Screw, BLK, Head, Button 5/16-18 X 5/8 long

Cart handle, back of cart

410004640

2

Screw, Head, Hex 18-8ss, 5/16-18X1.5 Long

Monitor articulation arm to frame

410004641

2

Nut, Hex 18-8ss, 5/16-18

Monitor articulation arm to frame

410004642

2

Washer, Lock, Split, 18-8ss, 5/16

Monitor articulation arm to frame

410004643

8

Washer, C'Sink, 90 Deg, 18-8ss

Solvent bottle bracket assembly

410004644

25

Screw, FH, Philips M6X16MM long

Sheet metal hardware

410004646

2

1" wide Hook and Loop self adhesive

Mounting for power supplies

410004647

4

Small Cable Restraints

Cable organizer back of cart

410004648

1

Large Cable Restraints

Cable organizer back of cart

410004650

12

Cable Ties 6" LG

Cable organizer back of cart

410004652

1

Black Channel, Organizer, Locking, 1WD X 30LG

Cable organizer back of cart

410004653

1

Black Channel, Organizer, Locking, 1WD X 12LG

Cable organizer back of cart

410004654

1

Black Channel, Organizer, Locking, 1WD X 5.5LG

Cable organizer back of cart

410004656

1

Convoluted Split Sleeving

Monitor electrical cords

410004657

1

Cap, Lock, Vapor, Can, JERRY

Nalgene waste bottle

410004658

5

Plugs, 1/4 NPT, Male, PTFE

Nalgene waste bottle

410004659

2

Tubing, 3/8ID X 1/4 NPT, Conn, Barbed

Nalgene waste bottle

410004660

2

Tubing, 1/4ID X 1/2 NPT, Conn, Barbed

Nalgene waste bottle

410004661

2

Tubing, 1/2ID X 1/2 NPT, Conn, Barbed

Nalgene waste bottle

410004663

2

SCREW, PH, PHILIPS, M8X25

Hardware for pump waste bracket

410004665

1

Cord, Pwr, Nema 5-20P / C19

Power cord, PDU to wall

410004715

1

Coupling, Reducing, White, 5/16ID - 1/4ID

Waste drain line

410004716

1

Elbow, White, Barbed, Single 90Deg

Waste drain line

410004717

1

Coupling, Reducing, White, 1/4ID - 3/16ID

Waste drain line

410004718

2

Coupling, Y Design, White, 1/4ID

Waste drain line

410004719

1

Adapter, Pipe, Male, 1/4NPT

Waste drain line

410004720

6

Screw, SCHS, 18-8SST, M6 x 16

CPU Supports

410004722

1

1/2 NPT Plug

Waste drain line

415000241

1

Droptray, Heat Exchanger

Valve selector drip tray

430000525

12"

Tubing, .437 X .312, TYGON 2475

Waste drain line

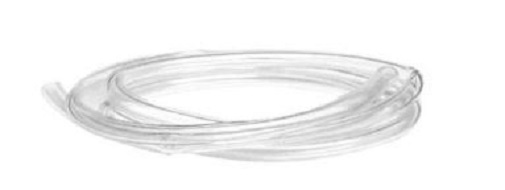

430000604

60"

Tubing, .375 OD X .250 ID, TYGON 2075

Waste drain line

430000619

6"

Tubing, 5/16" OD X 3/16" ID, TYGON 2075

Waste drain line

430001054

18"

Tubing, .50 OD X .38 ID, TYGON

Waste drain line

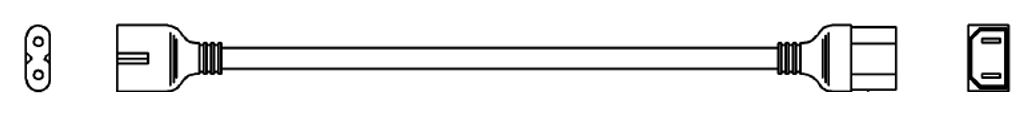

442000131**

or

442000247

1

Universal power cord

                              or

IEC jumper cables, Ethernet - power strip

442000132

7

Jumper Cord, 1 meter

IEC jumper cables, modules - power strip

442000133

3

Jumper Cord, 2 meter

IEC jumper cables, modules - power strip
