200000036 Waters ACQUITY UPC2 Binary Solvent Manager Startup Kit
ENVIRONMENT
- ACQUITY UPC2 System
- ACQUITY UPC2 Binary Solvent Manager
CONTENT
Waters ACQUITY UPC2 Binary Solvent Manager Startup Kit , Part Number 200000036
| Part Number | Quantity | Item | Image | Description/Location |
|---|---|---|---|---|
|
|
1 |
Luer Needle Assembly |
 |
Assists in Priming Pump. |
|
|
1 |
Syringe, Plastic |
 |
Used to Inject Mobile Phase (e.g. water/IPA) into the Inlet of the Pump during Initial Startup to wet the Check Valves. |
|
|
2 |
Connector, Plug, 12 Position |
 |
For Event Cable Connections. |
|
323000447 |
2 |
Connector Cover, 12 Position |
 |
ESD Protective Cover for 323000262. |
|
|
2 |

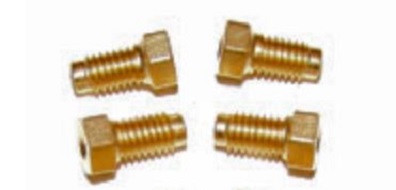

Screw, Compression, 10-32, ¼ Hex 304 SS, Gold PLT |
 |
Spare 10-32 Compression Screws. |
|
|
2 |
Ferrule, Set, .062, Two-Piece |
 |
Spare Two-Piece Ferrules. |
|
410001380 |
1 |
Adapter, Female Luer to Barbed |
 |
Assists in Priming Seal Wash Outlet Tubing. |
|
|
60" |

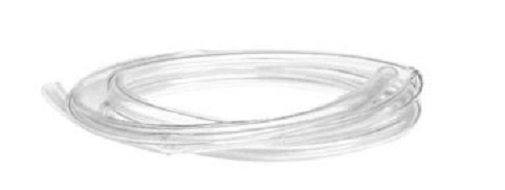

Tubing, .375 OD, Tygon |
 |
Drip Tray Drain Line. |
|
|
4" |
Pharmed Tubing, .156 OD x .031 ID |
 |
Assists in Priming Pump. |
|
|
1 |
Assy., Cable, Event, 6 ft. Long |
 |
Connects BSM I/O Ports to External Devices. |
|
|
1 |
Ethernet Patch Cord, Shielded, 2 ft. Long |
 |
Connects SDS to Ethernet Switch. |
|
605000106 |
1 |
Forceps, Reinforced Nylon |
 |
For Check Valve Replacement. |
