ACQUITY UPLC SM-FTN PLUS console displays ''needle seal force sensor h/w fault 0.0'' - WKB58797
Article number: 58797
SYMPTOMS
- ACQUITY UPLC Sample Manager - Flow Through Needle red light flashes
- Unable to perform injection
- Error displays in console
- After component re-initialization, SM-FTN shows "Seal not calibrated" error message
- During needle seal characterization, "Seal force sensor h/w fault (0.0)" appears
ENVIRONMENT
- ACQUITY UPLC Sample Manager - Flow Through Needle PLUS (SM-FTN PLUS)
- ACQUITY UPLC Sample Manager
CAUSE

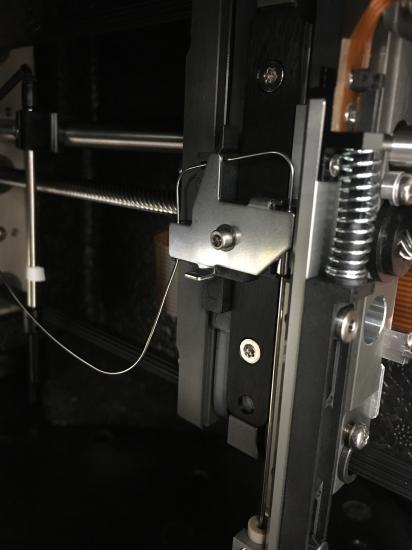

Needle is not seated correctly, due to loose screw on needle fixation plate.
FIX or WORKAROUND
- Select Replace > Needle in console, for better access to needle.
- Guide the needle correctly.
- Tighten the needle fixation plate.
- Characterize needle seal.
- Verify that dynamic leak test passes.
- Perform an injection to verify the fix.
ADDITIONAL INFORMATION
id58797, A-30SM, DLT, UPBINARY, UPISMFTN, UPPFTN, UPQSM, UPQSM+, UPQSMBIO, UPQSMBIO+, UPSMFTN, UPSMFTN, UPSMFTN+, UPSMFTN+, UPSMFTNB+, UPSMFTNBIO
