Alliance 2695 "Inject Start" does not trigger the third-party detector to collect data - WKB4427
Article number: 4427
SYMPTOMS
- Inject Start, which is set up correctly from Alliance, does not trigger data collection
- The cables are correct on the Alliance
ENVIRONMENT
- Alliance 2695
- Third-party detector
- Empower
CAUSE
Inject Start I/O signal connections are not working for this detector.
FIX or WORKAROUND

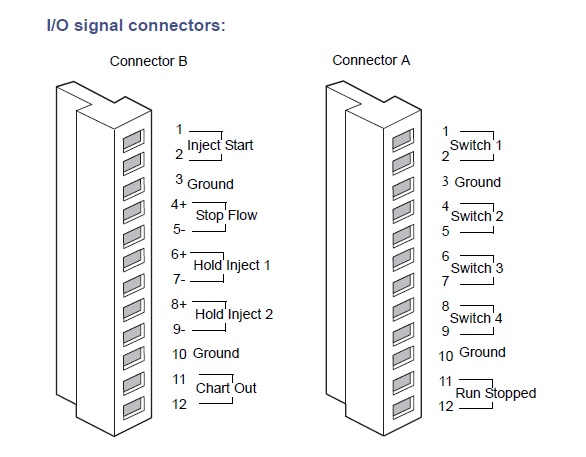

- Connect the cables from the detector to the I/O signal connectors for Switch 1.
- Enable a timed event in the Alliance 2695 instrument method in Empower.
ADDITIONAL INFORMATION
Alliance e2695 Separations Module Operator’s Guide
