Cannot create system with BusSAT/IN in Empower - WKB13568
Article number: 13568
SYMPTOMS
- Bus SAT/IN is not listed on the instruments tab of node properties
- BusLAC/E status is booted OK
- BusLAC/E driver is installed
ENVIRONMENT
- Empower
- Bus SAT/IN module
CAUSE
Bus SAT/IN is not configured on the serial ports tab of node properties.
FIX or WORKAROUND

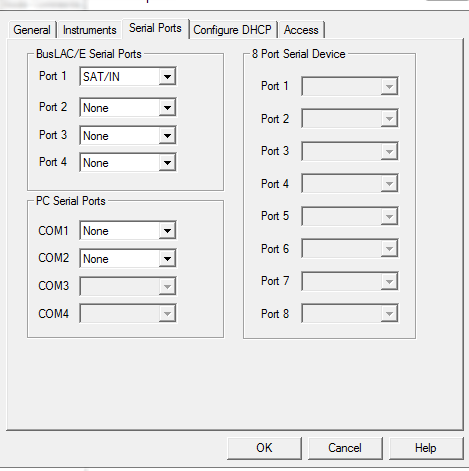

- Under BusLAC/E Serial Ports, select SAT/IN from the drop-down menu for port 1.
- Click OK.
- Return to node properties. "SAT/IN 1" and "SAT/IN 2" are listed in the Instruments tab of node properties.
- Create system.
