How to import the system suitability test materials for Vion IMS QTof - WKB92598
OBJECTIVE or GOAL
Import the analysis method, report template, sample list, custom fields, and library needed to run the Vion LC-HDMSE QC System Suitability Test
ENVIRONMENT
- UNIFI 1.8
- UNIFI 1.9
- Vion IMS QTof
PROCEDURE
- Importing the custom fields

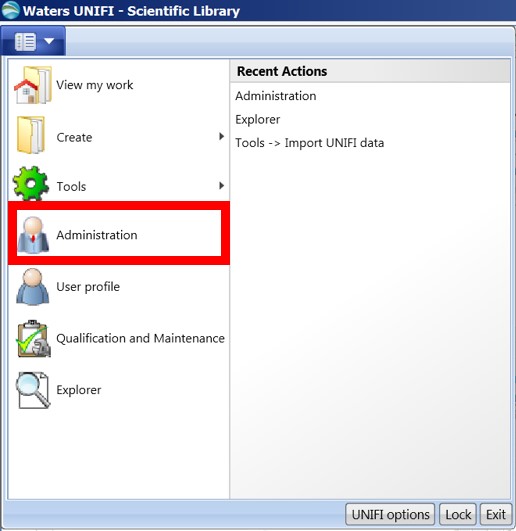

- From the drop-down list in the My Work pane (in the top-left of the UNIFI window), select Administration.
- Click Manage Custom Fields and Formulas.
- Click (in the top-right of the UNIFI window) to import the "Vion SST Custom Fields.dat" file.
- Importing the library
- From the Administration window, click Scientific Library.
- Click Import library items.
- From the Type of import list, select UNIFI library container file.
- Click the "Browse" button and locate the "LC-MS QC Reference.ulc" file to import.
- Specify a name and description for the library.
- Click Import.
Note: The newly created library contains sum formulae and MOL files for all nine test compounds, together with their CCS values.
- Importing the SST analysis files.
The UNIFI export package (.uep) contains the analysis method, sample list, and report template. The analysis method, which was created with a system comprising an ACQUITY UPLC I-Class, a Sample Manager FTN, and a Column Manager, plus a Vion IMS QTof, is provided as an example.
-
From the My Work pane, click Tools > Import UNIFI data.
- In the File box, click the "Browse" button and navigate to the "Vion LC-MS QC SST.uep" file.
-
Select a folder location, and then click Import.
ADDITIONAL INFORMATION
This procedure is a complement to the "Vion LC-HDMSE QC System Suitability Test" (715005426 Revision B).
