How to split a shoulder peak with a tangent? - WKB223192
OBJECTIVE or GOAL
- To split a shoulder peak with a tangent
ENVIRONMENT
- Empower 3
- Empower 2
PROCEDURE
About skim
There are two types of skim events:
Tangential skims: Draw a line (tangent line) to skim the unresolved peak from the larger peak.
Exponential skims: Draw a curve (exponential function) to skim the unresolved peak from the larger peak.

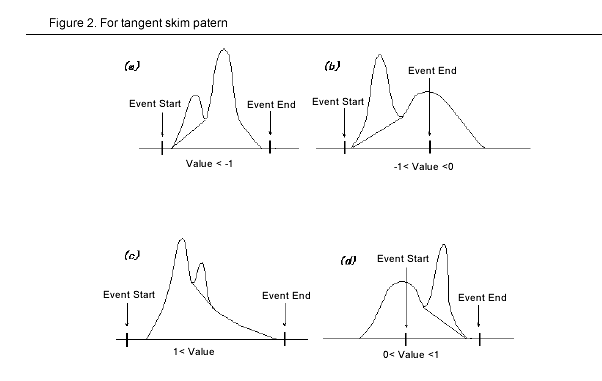

Skim method
1. Check the height ratio of each peak to determine to split with a drop line or perform the skim.
If ratio > value... Skim is performed
If ratio < value... A drop line is drawn
Value: [Value] of the skim event row
Select "Processing Method" from the window to open the Edit Processing Method window.
Click the Integration tab and add a row of Tangent skim to the event table.
Check the integration on the main window.
After confirming the integration, save the skim event settings set in Save > Processing Method from the File menu.
