700004864 BGM Transducer Upgrade Kit

WAT410340

4

M3 Split Lockwasher

Used under the (4) mounting screws

WAT411310

2

M3 x 10 PH Screw

Used to mount the Adapter to the BGM Head

WAT411316

2

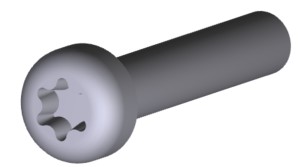

M3 x 16 PH Screw

Used to mount the Transducer to the Adapter

279001380

1

Transducer Assembly

New Transducer Assembly

405006240

1

Plate, adapter

Used to mount the New transducer to the exisiting BGM head.

430001295

1

Assy,  Inlet Tube

Pump Head to Transducer Tube

430001300

1

Assy, Outlet Tube

Transducer to Manifold Tube
