205002506 Waters Arc HPLC QSM-R 690 uL Mixer Kit
Article number: 260932
ENVIRONMENT
- Arc HPLC System
CONTENT
Waters Arc HPLC QSM-R 690 uL Mixer Kit, Part Number 205002506
| Part Number | Quantity | Item | Image | Description/Location |
|---|---|---|---|---|
|
400011903 |
1 |
BRACKET, MOUNTING, BONDED MIXER |
 |
Used to Mount Mixer |
|
405029470 |
1 |
MIXER, 690UL, TITANIUM, 5-STAGE |
 |
Mounted on Mounting Bracket, Flow Arrow is left to right when the user is facing the system. The flow part number should be right side up. FLOW arrow points from inlet port to outlet port. |
|

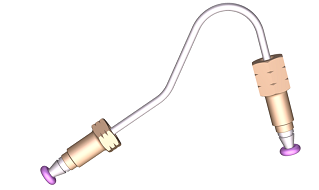

430006393 |
1 |
ASSY, TUBE, VV2 TO 690UL MIXER, ARC PREM |
 |
Connects Vent Valve Port 2 to Mixer Inlet. |
|
430006628 |
1 |
ASSY, TUBE 690UL MIXER TO VV5, MP35N |
 |
Connects Mixer to Vent Valve Port 5. |
|
WAT271463 |
2 |
SCREW, M3 X 6 LONG SEMS |
 |
Mounts the Mixer Bracket Assemby in the QSM-R’s front panel, on to 2 M3 PEMs located to the upper right of Vent Valve |
|
WAT410330 |
2 |
WASHER, PLAIN, SST, M3 X M9 |
 |
Used to Mount the Mixer on Mounting Bracket |
|
WAT411318 |
2 |
SCREW, M3 X 18, PAN HEAD, HEXALOBULAR, S |
 |
Used to Mount the Mixer on Mounting Bracket |
