205002365 Waters ACQUITY Premier Binary Hexane/THF w/out Degassers Kit

289003370

1

Assy, Adapter, fitting, tube

Use with 430001847 tubing.

289006360

2

Assy, Check Valve, Accumulator, TI, G

Replaces standard accumulator check valve on QSM pump.

289006374

2

Assy, Cartridge, i2V,  BioACQUITY, G

Replaces standard primary check valve for QSM I2 Valve.

289009142

1

Assy, back pressure restrictor

Restrictor to maintain back pressure on flow cell in ACQUITY detector when the detector is plumbed last in the stack. Back pressure restrictor outlet tubing is the detector waste line.

405006531

1

Fitting, Adapter, 1/16 barb to 1/8 tube

Replaces the wash pump fitting.

410000370

1

Ferrule,flangeless,tefzel,lock ring 1/8

Use with 410001260 compression screw

410001260

1

Nut, 1/8 OD tube, short, 1/4-28

Install on seal wash pump on BSM. Replaces standard Tefzel barbed fitting.

425000545

2

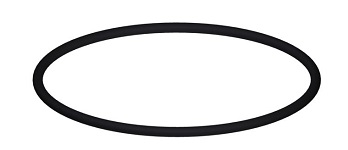

O-RING, SIMRIZ 495, 1.062 ID X .040 wide

For BSM drip tray drain cup and for the Column Manager drain cup. Replaces standard EPDM o-ring.

430001831

2

Tube, Convoluted, 5/16” ID  X 72” long

For BSM drain cup outlet fitting. For Col. Mgr. drain cup outlet fitting. Replaces standard tygon 2075 Drain Tube. Stretch Cuff ID if necessary.

430001847

1

Tube, convoluted, cuff one end 3/8 id x 6.75” long

For BSM upper drip tray to BSM lower drip tray cover rear drain port. Replaces standard Tygon 2075 tube. Stretch cuff ID if necessary.
