205002319 Waters Arc HPLC Hexane/THF Conversion Kit

289003357

1

Assy, primary check vlv, sprg-loaded, g

Replaces standard primary check valve on QSM-R pump

289003360

1

Assy, check valve, dual ball & seat, g

Replaces standard accumulator check valve on QSM-R pump

405006531

1

Fitting, adapter, 1/16 barb to 1/8 tube

Use with 410001260 compression screw and 410000370 ferrule

410000370

1

Ferrule,flangeless,tefzel,lock ring 1/8

Use with 410001260 compression screw

410001260

1

Nut, 1/8 OD tube, short, 1/4-28

Install on seal wash pump on QSM-R. Replaces standard tefzel barbed fitting

410004788

1

Waste valve, inline, 1/4-28 threads pps

Replaces waste line check valve in the SM FTN-R

425000545

1

O-ring, simriz 495, 1.062 ID x .040 wide

For QSM-R drip tray drain cup. Replaces standard EPDM o- ring

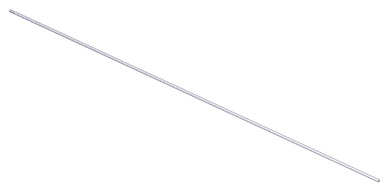

430001831

1

Tube,convoluted,5/16 ID x   72 lg

For QSM-R drain cup outlet fitting. Replaces standard tygon 2075 drain tube. Stretch cuff ID if necessary

430001847

1

Tube, convoluted, 3/8 ID, cuff one end

For QSM-R upper drip tray to QSM-R lower drip tray cover rear drain port. Replaces standard tygon 2075 tube. Stretch cuff ID if necessary

430006011

1

Assy, Tube, SST, .062 X .010 X 24.0L

For ARC HPLC application

430004799

4

Assy, tube, degasser to gpv, SS

Replaces PEEK tubing assemblies connecting degasser to GPV on QSM-R

430004803

1

Tube, ETFE, .062 x .020 x 60, waste

Replaces the PEEK tubing connecting the detector outlet to QSM-R waste tray
