205002210 Waters Arc MDLC – CMA Tubing Kit
ENVIRONMENT
- ACQUITY Arc MDLC System
CONTENT
Waters Arc MDLC – CMA Tubing Kit, Part Number 205002210
| Part Number | Quantity | Item | Image | Description/Location |
|---|---|---|---|---|
|
1 |

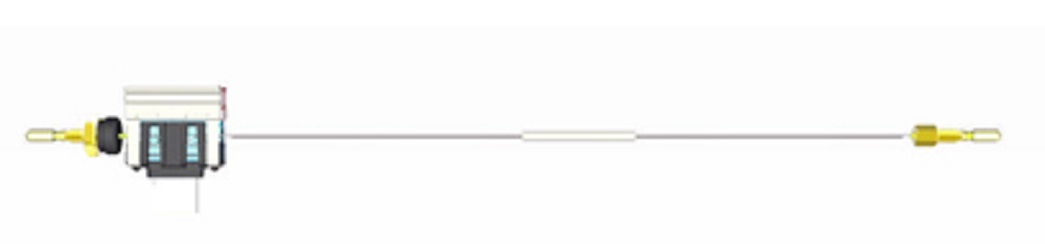

Kit, ACQ. UPC2 APH, SST, .007ID x 12.5" |
 |
Connects RV (Right Valve) CM-A Port 6 to D2 Column Inlet |
|
|
1 |
Kit, ACQ. UPC2 APH, SST, .007ID x 18.5" |
 |
Connects FTN Inject Valve Port 6 to D1 Column Inlet |
|
|
|
1 |
Assy, bottle tray |
 |
Placed on top of the either of the ACQUITY instrument stacks |
|
|
1 |
Assy, mixer, HP, 50ul, zirconia |
 |
Used to connect Mixer Outlet to Trap Column Inlet (SS three way 50uL Mixer) |
|
|
5 |

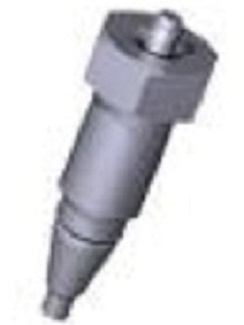

Plug, pin, high pressure |
 |
Unused CM-A Valve Port Plugs (Left & Right CM-A Valves, Port 1) |
|
|
10 |

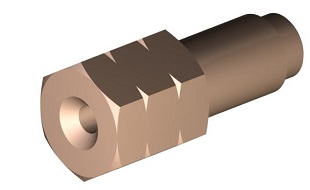

Scr comp,10-32 lg 1/4 hex 304SS gld plt |
 |
Used for fluidic connections |
|
410000273 |
5 |
Ferrule, lite touch,.062 tubing |
 |
Used for fluidic connections |
|
|
5 |
Fitting, litetouch, .062 OD, 10-32, PEEK |
 |
Used for fluidic connections |
|
|
5 |
Y-connector, barbed, 1/4" ID tube |
 |
To connect the waste lines together |
|
|
8 |
Plug, 1/4-28, teflon |
 |
Used to plug unused degasser ports on Solvent Manager |
|
|
10 |
Ferrule, set, .062, two-piece |
 |
Used for fluidic connections |
|
|
2 |
Screw, M2.5 X 8 SKT HD CAP, SST |
 |
Used to attach valve pods to Column Manager valve drivers |
|
430002211 |
1 |
Assy, Sample Loop, 250 uL |
 |
Connects LV (Left Valve) CM-A Port 3 & 4 (250µL Sample Loop) |
|
|
1 |
Assy, tubing, BSM outlet to SM, I-Class |
 |
Connects D2 QSM-r to Mixer |
|
|
1 |

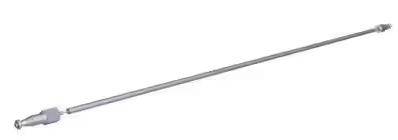

Assy, welded tube, SST, .007 x 14.5 LG |
 |
Connects LV CM-A Port 2 to RV CM-A Port 3 |
|
430002999 |
1 |
Assy, welded tube, SST, .007 x 22.5 LG |
 |
Connects D1 Column Outlet to LV CM-A Port 5 |
|
|
2 |
Tube, PEEK, .062 x .005 x 24 |
 |
Connects LV CM-A Port 6 efto D1 Detector Inlet & D2 Column Outlet to D1 Detector Waste (Single Detector) / D2 Detector Inlet (If applicable)
|
|
|
1 |
Tube, SST, .062 x .010 x 19l |
 |
Connects D1 QSMr to FTN Inject Valve Port 5 |
|
3 |
Tube, PEEK, .062 x .020 x 60, waste |
 |
Connect Detector(s) outlet to Waste & RV CM-A Port 4 to waste |
|
|
430005989 |
1 |
Assy, tube, SST, .06 OD x .01 ID, 10.53l |
 |
Connects Trap Column Outlet to RV CM-A Port 5 |
|

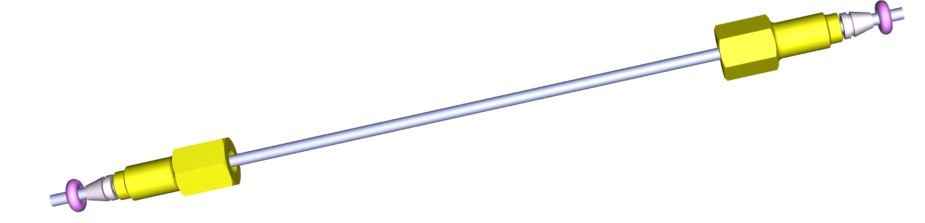

430005991 |
1 |
Assy, tube, SST, .06 OD x .01 ID, 4.50l |
 |
Connects RV CM-A Port 2 to Mixer |
|
615004296 |
1 |
Label, valve position, CM-A |
 |
Magnetic label placed on the backside of the CM-A cover |
