205002165 Waters ACQUITY CM-A Two Column MP35N .005 ID Tubing Kit
ENVIRONMENT
- ACQUITY Arc
- ACQUITY Arc Premier
- ACQUITY Arc Column Manager - Active (CM-A)
CONTENT
Waters ACQUITY CM-A Two Column MP35N .005 ID Tubing Kit, Part Number 205002165
| Part Number | Quantity | Item | Image | Description/Location |
|---|---|---|---|---|
|
2 |
ACQ, APH, MP35N, .005ID X 12.5LG, Bio |
 |
Connects Inlet Switching Valve to Column Inlets |
|
|
|
9 |
PLUG, PIN, HIGH PRESSURE |
 |
Used on Switching Valves |
|
430002659 |
1 |
TUBE MARKERS, CM-A, .040 ID |
 |
Used on tubes to identify fluidic connections |
|
430002727 |
1 |
ASSY, TUBE, SST, WASTE, CM-A |
 |
Connected “w” port from Inlet Switching Valves to Waste |
|
430002779 |
1 |
ASSY, TUBE, MP35N, BY-PASS, CM-A |
 |
Connects “B” Bypass ports from Inlet Switching Valve to Outlet Switching Valve |
|

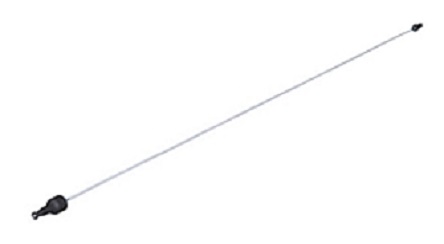

430005882 |
1 |
ASSY, TUBE, MP35N, 14.5 L X .005 ID, LP |
 |
Connects Outlet Switching Valve center port to Detector |
|
430005885 |
1 |
ASSY,TUBE,WELDED,MP35N,14.5L,.005 ID, HP |
 |
Connects Sample Manager Injection Valve Inlet to Switching valve center port |
|
430005886 |
2 |
Assy,tube,welded, MP35N, 19L, .005 ID, LP |
 |
Connects Column outlet to Outlet Switching Valve |
|
615005136 |
1 |
LABEL, CM-A LEFT INLET COL. DIAG. |
 |
Magnetically attaches to inside of doors, to assist in plumbing |
|
|
1 |
Kit, Ferrule Back Locking PEEK, 1/16 2PK |
 |
Spare Ferrules |
