205001870 Waters ACQUITY UPLC Alternative Waste Management System, Single Stack Kit
ENVIRONMENT
- ACQUITY UPLC H-Class PLUS System
- ACQUITY UPLC H-Class PLUS Bio System
- ACQUITY UPLC I-Class PLUS System
- ACQUITY Arc System
- ACQUITY Arc Bio System
- ACQUITY UPLC H-Class System
- ACQUITY UPLC H-Class Bio System
- ACQUITY UPLC I-Class System
CONTENT
Waters ACQUITY UPLC Alternative Waste Management System, Single Stack Kit, Part Number 205001870
| Part Number | Quantity | Item | Image | Description/Location |
|---|---|---|---|---|
|
WAT027033 |
5 |
Cable tie miniature |
 |
Ties tubing together to organize routing. |
|
WAT081265 |
2 |
Screw, M3 x 10 sems |
 |
Hardware used to attach long tube guide to platform. |
|
WAT410340 |
2 |
Washer, lock, split, M3 x M6.2, SST |
 |
Hardware used to attach Connector Bracket to Tube Guide (located next to screw head). |
|
WAT410430 |
2 |
Washer, plain, SST, M4 x M12 |
 |
Hardware used to attach Connector Bracket to Tube Guide (located under split washer). |
|
WAT413306 |
2 |
Screw, metric, socket head cap, M3 x 6MM long |
 |
Hardware used to attach Connector Bracket to Tube Guide. |
|
289012739 |
1 |
Assy, platform, 2.0 in lift |
 |
Raises system to allow rear drainage. Sits on bench top below bottom module in stack. |
|
289013025 |
1 |
Assy, tube guide, 15.20 in long |
 |
Constrains drain tubes while routed to back of bench, attached to side of platform. |
|
289013029 |
1 |
Assy, tube guide, 7.30 in long |
 |
A pivoting extension of long tube guide, that allows routing tubes to hole edge in bench or edge of back of bench top. |
|
400009253 |
1 |
Connector, bracket, tube guide |
 |
Connects the long and short tube guides together. The connector bracket allows short tube guide adjustment and alignment. |
|

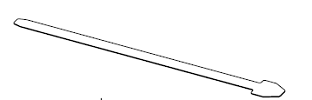

405024990 |
3 |
Wick, drip tray |
 |
Placed in drip tray fitting and extends into tube to facilitate draining (required for proper drainage). |
|
|
2 |
Y-connector, barbed, 1/4" ID tube |
 |
Combines two waste lines into one at waste container. Not to be used for Solvent Manager waste line, Solvent Manager line needs to connect directly to waste container. |

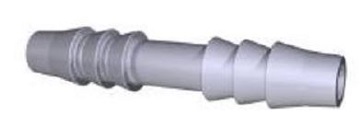

| 410005717 | 2 | Straight con, barbed, 1/4" ID, nylon |  |
Connects Sample Manager convoluted tube to Tygon waste line. |
|
410007259 |
1 |
Cross, 4-port, barbed, 1/4 ID tube, poly |
 |
Combines three waste lines into one at waste container. Not to be used for Solvent Manager waste line, Solvent Manager line needs to connect directly to waste container. |
|
415000680 |
1 |
Elbow, drain, 1/8 NPT to barbed |
 |
Large ID fitting for connecting Detector Auxiliary drip tray to waste Tygon tubing (ID size required). |
|
415003509 |
1 |
Fitting, degasser vent, rt angle, molded |
 |
Connects to Solvent Manager drip tray cover to attach the degasser vent tube. |
|
|
144" |
Tubing, .375 OD x .250 ID, tygon 2075 |
 |
Drain line that connects to Solvent Manager drip tray fitting. |
