205001819 Waters ACQUITY UPLC CM-A Two Column Tubing Kit
ENVIRONMENT
- ACQUITY UPLC H-Class
- ACQUITY UPLC Column Manager (CM-A)
CONTENT
Waters ACQUITY UPLC CM-A Two Column Tubing Kit, Part Number 205001819
| Part Number | Quantity | Item | Image | Description/Location |
|---|---|---|---|---|
|
2 |

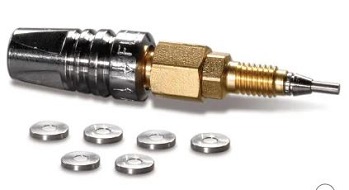

Kit, ACQUITY Col. In-Line Filter |
 |
Used to protect ACQUITY UPLC BEH Columns from particulate matter |
|
|
2 |

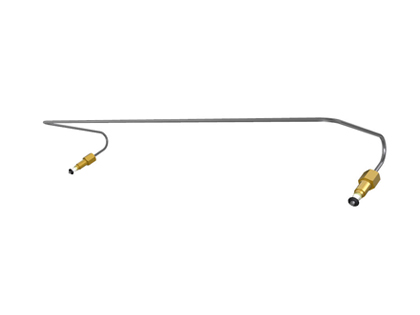

ACQUITY UPLC APH SS 12.5LG - PLUS |
 |
Connects Inlet Switching Valve to Column Inlets |
|
|
|
9 |
Pin Plug, 1/16", HIGH PRESSURE
|
 |
Used on Switching Valves |
|
|
1 |
ASSY, WELDED TUBE, SST, 14.5 LG, HP |
 |
Connects SM Inject Valve inlet to Switching Valve center port |
|
430002659 |
1 |
TUBE MARKERS, CM-A, .040 ID |
 |
Used on tubes to identify fluidic connections |
|
430002727 |
1 |
ASSY, TUBE, SST, WASTE, CM-A |
 |
Connects “w” port from inlet Switching Valve to waste |
|
|
1 |
ASSY, TUBE, SST, BY-PASS, CM-A |
 |
Connects “B” Bypass ports from Inlet switching Valve to Outlet Switching Valve |
|
430006189 |
1 |
Assy, W.Tube, MP35N .005"X14.5" , HP,HPS |
 |
Connects SM Inject Valve inlet to Switching Valve center port |
|
430002683 |
2 |
ASSY, WELDED TUBE, SST, 19.0 LG, LP |
 |
Connects Columns outlet to Outlet Switching Valve |
|
|
1 |
ASSY, WELDED TUBE, SST, 14.5 LG, LP |
 |
Connects Outlet Switching Valve center port to Detector |
|
615005136 |
1 |
LABEL, CM-A LEFT INLET COL. DIAG. |
 |
Magnetically attaches to inside of door for ease of plumbing |
|
|
1 |
Kit, Ferrule Back Locking PEEK, 1/16 2PK |
 |
Spare Ferrules |
