205001557 Waters ACQUITY Arc SM FTN-R H/C Upgrade Kit
ENVIRONMENT
- ACQUITY Arc FTN-R
CONTENT
Waters ACQUITY Arc SM FTN-R H/C Upgrade Kit, Part Number 205001557
| Part Number | Quantity | Item | Image | Description/Location |
|---|---|---|---|---|
|
WAT034347 |
2 |
Screw, metric, hex, M4 x 6 |
 |
Used to connect barrier board to chassis |
|
WAT412416 |
3 |
Scr,metric pn/hd tap M4x16 |
 |
Used to mount insulation retainer plate to sample compartment insulation |
|
210000907 |
1 |
Assy, PCB, barrier ckt, fan |
 |
Used to limit current to heater/cooler |
|
279003440 |
1 |
Assy, Engine, HTR/CLR, CPSM |
 |
Heater/Cooler used to maintain sample compartment temperature |
|
279003423 |
1 |

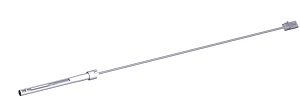

Assy, Holder, 0.1C Thermistor |
 |
Thermistor assembly for thermal control |
|
400007559 |
1 |
Plate, Retainer, Insulation |
 |
Compresses insulation onto the heater/cooler and retains the thermistor holder |
|
401001175 |
1 |
Insulation, filler, top, HTR/Cooler |
 |
Insulation to seal heater/cooler in the sample compartment |
|
441001692 |
1 |
Assy, cable, SM driver to fan barrier |
 |
Connects SM driver board to barrier board |
|
615004820 |
1 |
Label, ID, HTR/CLR
|
 |
Label to designate the sample manager has been upgraded with a heater/cooler |
