205001487 Waters ACQUITY Arc CH/CHC Core Fluidics Kit
Article number: 262002
ENVIRONMENT
- ACQUITY Arc
CONTENT
Waters ACQUITY Arc CH/CHC Core Fluidics Kit, Part Number 205001487
| Part Number | Quantity | Item | Image | Description/Location |
|---|---|---|---|---|
|

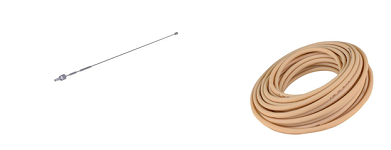

205001562 |
1 |
Kit, ACQ Arc Column Out Insulation, .005 |
 |
Column outlet tubing insulation kit |
|
|
1 |
Union, SST, v-v, .010" thru |
 |
Connects tube from sample manager inject valve to passive preheater inlet tube |
|
|
2 |
Y-connector, barbed, 1/4" id tube |
 |
Used to merge instrument waste lines |
| 430004580 | 1 | Tube, PEEK, .062 x .005 x 24 |  |
Column outlet to detector inlet |
| 430004688 | 1 | Tube, PEEK, .062 x .020 x 60, waste |  |
Connects detector outlet to QSM waste tray |
|
|
1 |
Tube.SST, .062 x .005 x 10 L |
 |
Connects sample manager inject valve port 6 to union with passive preheater |
