205001484 Waters ACQUITY Arc 30-cm Column H/HC .005 ID Passive Preheater Kit

289010685

1

Assy, .005 ID PPH, 3D Bent w/ Fit, Epoxy

.005" ID Passive Preheater (PPH) Assembly

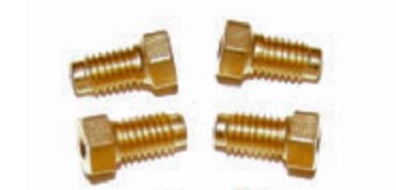

405003608

1

Scr,Comp,10-32, 1/4 Hex 304 SS, Gold Plt

Fitting to Connect the PPH to the Union

405018042

1

Screw, Compression, Locking, Knurled

Compression Screw for Connecting PPH to Column

405018204

1

Ferrule, Back Locking, PEEK, 1/16

Locking Ferrule for Connecting PPH to Column

410001349

1

Ferrule, Set, .062, Two-Piece

Ferrule to Connect the PPH to the Union

WAT251620

2

Nut, M4 X 0.7, KEP

KEPS Nuts to Secure the PPH to the Compartment Bracket
