205001313 Waters ACQUITY Single Column Manager-30S UPC2 Integration Kit
ENVIRONMENT
- ACQUITY UPC2 System
- ACQUITY UPC2 Single Column Manager-30S (CM-30S)
CONTENT
Waters ACQUITY Single Column Manager-30S UPC2 Integration Kit, Part Number 205001313
| Part Number | Quantity | Item | Image | Description/Location |
|---|---|---|---|---|
|
|
1 |
Kit, leak sensor assembly |
 |
Leak detection kit for CM-30S |
|
|
72” |

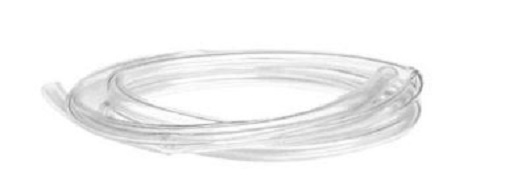

Tubing, .375 OD x .250 ID, tygon 2075 |
 |
Drain tubing for CM-30S lower drip tray |
|
430003337 |
1 |
Assy, tube, SFC manager p2 to waste |
 |
CM-30S waste line for 6 column with bypass configuration |
|
430004175 |
1 |
Assy, tubing, peek, .007 ID, 31 lg |
 |
CM-30S outlet tube, connects CM-30S valve 2 port 9 to detector inlet |
|
430004192 |
1 |
Assy, tube, bypass, CM-30S |
 |
Connects CM-30S valve 1 port B to valve 2 port B to bypass columns |
|
430004389 |
1 |
Assy, tube, hypo ext, .007 ID x 21.5 lg. |
 |
CM-30S inlet tube, connects convergence manager port 6 to CM-30S valve 1 port 9 |
|
|
2 |
Kit, ferrule b/l PEEK, 1/16 mach. 10pk |
 |
Used with 700010011 to plumb columns |
|
700010011 |
2 |
Kit, screw, comp., locking, knurled 8 pk |
 |
Used with 700010009 to plumb columns |
