205001178 Waters ACQUITY Advanced Polymer Chromatography System Accessories Kit

WAT270796

6

Flangless compression screw, ¼-28, 1/8” ID

Used for securing solvent outlet tubes to bottle cap

WAT270993

5

Screw, flangeless compression (1/4-28) 1/16 ID

To secure process waste tubing, 1/16” OD ETFE, to suitable waste manifold

WAT271143

5

Ferrule, flangless with lock ring 1/16 ID (ETFE)

To secure process waste tubing, 1/16” OD ETFE, to suitable waste manifold

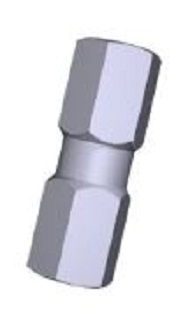

405003460

1

Union, .020 ID, V-detail

Used to join ACQUITY UPLC tube assemblies.

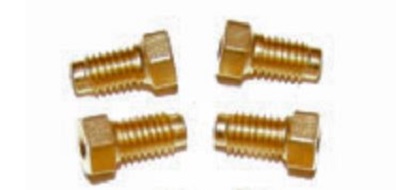

405003608

2

Scr, comp, 10-32, ¼ hex, 304SS, Gold, plt.

Used with ACQUITY UPLC tube assemblies.

410000370

6

Ferrule, flangelss, tefzel, lock ring 1/8

Used for securing solvent outlet tubes to bottle cap

410000419

1

Hex head screw, M4 X 10

Secure cable clamp, 410001285, to pFTN chassis

410000868

2

Plug, ¼-28, Teflon

Plug unused ports in bottle cap, if required, to prevent vapor escape

410001285

1

Clamp, cable 3/8” diameter

Secure bottle tray drain tube, 430003955

410001349

2

Ferrule, set, .062, two-piece

Used with ACQUITY UPLC tube assemblies.

410001401

1

Pin plug, 1/16", high pressure

To perform system level leak test with union 405003460 and to aid when cleaning the detector flow cells.

410004818

1

Fitting, ¼-18 NPT to 1/8” ID hose barb

Secure degasser tubing to optional waste bucket manifold

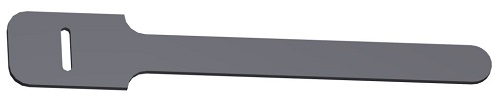

410004910

3

Tie cable, hook and loop

Use tie wraps to dress up process waste and leak tubes below the ISM

410004921

2

GL 45 4 port closed system cap with air inlet valve

Bottle caps for reservoir management.

410004972

1

Fitting, 90 deg elbow, HDPE

For use with bottle tray drain tubing at pISM tube guide exit

417000189

2

Valve, relief outlet 1 psi ¼-28

Outlet relief valve to avoid pressure build up within the solvent bottle

430000616

240”

Tubing, etfe, .030 id X .062 od

Process waste tubing

430003955

96

Tubing, ¼” ID X 3/8” OD tygon-fep

Drain tube for bottle tray

430004035

1

Assy, tubing, pump outlet

Connects the ACQUITY pISM filter outlet to the pFTN inject valve.

441000371

1

Ethernet cable

Connects Ethernet switch to workstation.

441000373

2

Assy, cable, event, 6pt

Rear panel event cable.
