205001021 515/UPC² Makeup Pump Installation Kit
ENVIRONMENT
- ACQUITY UPC2 System
- 515 HPLC Pump
CONTENT
515/UPC² Makeup Pump Installation Kit, Part Number 205001021
| Part Number | Quantity | Item | Image | Description/Location |
|---|---|---|---|---|
|
1 |

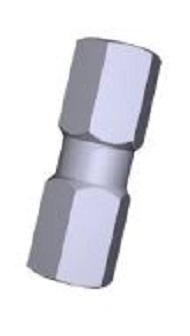

Union, SST, 0.020 ID, 10-32 thread |
|
Connect to the restrictor tube |
|
|
430003447 |
1 |
Restrictor tube |
|
Connect to the top of the check valve and bracket assembly and union |
|
289007881 |
1 |
Check valve and bracket assembly |
|
Check Valve and bracket assembly to connect to the bezel. |
|
1 |
Outlet tube |
|
Connect to the bottom of check valve and the pressure transducer. |
|
|
415000311 |
1 |

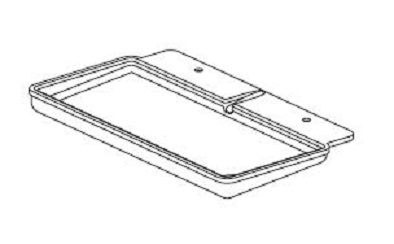

Drip tray, 515 pump |
|
Drip tray for under the 515 |
|
405014721 |
1 |
Elbow, 1/8 NPT to barb, modified |
|
Connect to drip tray |
|
430000525 |
72" |
Tubing, TYGON, 5/16 ID X 7/16 OD |
|
Connect to Elbow connected to the drip tray |
|
415000317 |
8 |
Foot with washer, 0.75 tall, 0.60 OD |
|
To add height to the bottom of the detector. |
|
410000523 |
4 |
Screw, socket head, M4 X 40 |
|
Used to attached the feet to the bottom of the 515 |
|
WAT024170 |
6" |
Tape, Teflon sealant |
|
Used on the elbow threads that is connected to the drip tray. |
|
1 |
Key, Torx T20 |
|
T20 tors key to loosen and tighten screws |
