205000986 Waters ACQUITY UPC2 Active Column Manager (CM-A), 2 Column Tubing Kit
ENVIRONMENT
- ACQUITY UPC2 System
- ACQUITY UPC2 Column Manager-Active (CM-A)
CONTENT
Waters ACQUITY UPC2 Active Column Manager (CM-A), 2 Column Tubing Kit, Part Number 20500098
| Part Number | Quantity | Item | Image | Description/Location |
|---|---|---|---|---|
|
|
2 |
Kit, ACQUITY Col. In-Line Filter |
|
Used to protect ACQUITY UPLC BEH Columns from particulate matter |
|
|
2 |
Kit, APH, SST, .007” ID x 12.5” LG |
 |
Connects Inlet Switching Valve to Column Inlets and provides sample pre-heating before Column |
|
|
9 |
Plug, pin, high pressure |
 |
Used on Switching Valves |
|
430002659
|
1 |
TUBE MARKERS, CM-A, .040 ID |
 |
Used on tubes to identify fluidic connections |
|
|
2 |
ASSY, WELDED TUBE, SST, .007” ID X 19.0” LG |
 |
Connects Column outlets to Outlet Switching Valve |
|

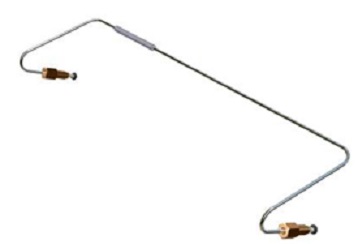

430003331 |
1 |
ASSY, TUBE, .030” ID X 14.5” LONG, SST |
 |
Connects “B” Bypass ports from Inlet Switching Valve to Outlet Switching Valve |
|
430003337 |
1 |
ASSY, TUBE, .030” ID X 60.0” LONG, PEEK |
 |
Connects “W” port from Inlet Switching Valve to Waste |
|
615004445 |
1 |
LABEL, CM-A 2-COLUMN DIAGRAM |
 |
Magnetically attaches to inside of door for ease of plumbing. |
