205000973 Waters ACQUITY UPLC H-Class Quaternary Hexane/THF Kit

289003360

1

Check Valve, Dual Ball and Seat (G)

Replaces standard accumulator check valve on QSM pump.

289003706

1

Assy, Cartridge, I²V, Hexane/THF Kit

Replaces standard primary check valve for QSM I² Valve.  See installation instructions P/N 71500144906.

289009142

1

Assembly, back pressure restrictor

Restrictor to maintain back pressure on flow cell in ACQUITY detector when the detector is plumbed last in the stack. Back pressure restrictor outlet tubing is the detector waste line.

405006531

1

Fitting, Adapter, 1/16” Barb to 1/8” Tube

410000370

1

Ferrule, 1/8” OD with lock ring

Use with 410001260 compression screw

410001260

1

Compression Screw, ¼-28 Thread

Install on seal wash pump on QSM. Replaces standard tefzel barbed fitting.

425000545

2

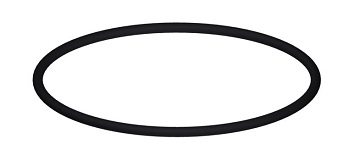

O-ring, Simriz 495, 1.062” OD X .040” wide

For QSM drip tray drain cup. For Col. Mgr. drain cup. Replaces standard EPDM o-ring.

430001831

1

Tube, Convoluted, 5/16” ID  X 72” lg

For QSM Drain Cup Outlet Fitting. For Col. Mgr. drain cup outlet fitting. Replaces standard tygon 2075 drain tube. Stretch cuff ID if necessary.

430001847

1

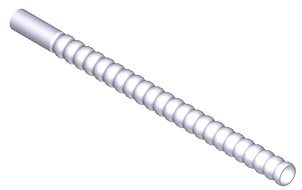

Tube, Convoluted, 3/8” ID X 6.75” lg

For QSM Upper drip tray to QSM lower drip tray cover rear drain port. Replaces standard tygon 2075 tube. Stretch cuff ID if necessary.

430001861

1

Assy, Tube SS, Std Flow, .005” ID,TUV/PDA Inlet, 6.00” lg

Replaces 6.00” lg peek tube Assy. from column heater to TUV/PDA inlet.

430001879

1

Assy, Tube SS, Std Flow, .005” ID,TUV/PDA Inlet, 10.50” lg

700005171

1

Kit, Degasser Vent Line (8ft) w/fittings

Extends the degasser vent exhaust line for the purpose of routing harmful solvent vapors to a suitable waste container.
