205000715 Waters ACQUITY UPLC H-Class Bio System Accessories Kit
ENVIRONMENT
- ACQUITY UPLC H-Class Plus Bio
CONTENT
Waters ACQUITY UPLC H-Class Bio System Accessories Kit, Part Number 205000715
| Part Number | Quantity | Item | Image | Description/Location |
|---|---|---|---|---|
|
|
2 |
Reservoir caps, 4 liter bottle |
 |
Bottle caps for reservoir management. |
|
|
2 |
Reservoir caps, 1 liter bottle |
 |
Bottle caps for reservoir management. |
|
|
1 |
Tubing, TFE clear, 25 Feet |
 |
Used to conduct ACQUITY UPLC System startup. |
|
|
2 |
Kit, Column support clips 10 Pack |
 |
Supports columns in heater trough. |
|
289003370 |
1 |
Assy. Adapter fitting tube |
 |
Insert into the QSM lower drip tray cover front drain port. Use with 430001846 tube. |
|
|
1 |
Plug, pin, high pressure |
 |
To perform system level leak test with union 405003460 and to aid when cleaning the detector/s flow cells. |
|
|
2 |

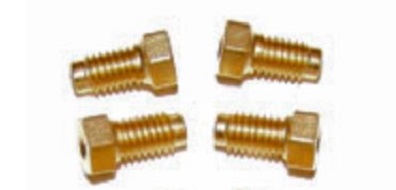

Screw, compresson, 10-32, ¼ hex, 304SS, gold, plate |
 |
Used with ACQUITY UPLC tube assemblies. |
|
|
1 |
Y-Connector, barbed, 1/4" ID tube
|
 |
To connect the waste lines. |
|
|
2 |
Ferrule, set, 0.062, two-piece |
 |
Used with ACQUITY UPLC tube assemblies. |
|
405011424 |
1 |
Union, Body 0.010 ID v-Detail Titanium |
 |
Used to join ACQUITY UPLC tube assemblies. |
|
|
120 |

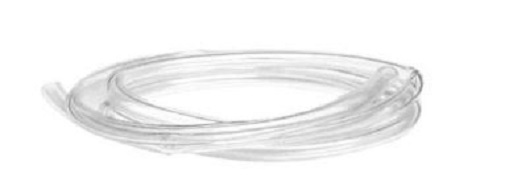

Tubing, 0.375 OD x 0.250 ID x 120.0 in long, Tygon |
 |
Drain tube for bottle tray. |
|
|
1 |
Assy., Tube, M/S Inlet (0.004”) |
 |
Connects the ACQUITY UPLC to the Mass Spectrometer inlet. |
|
430001846 |
1 |
Tube convoluted, 0.25” ID x 11.00” long. |
 |
Connect into SM-FTN drain fitting and route to adapter fitting on QSM lower drip tray cover. Stretch cuff ID if necessary. |
|
|
1 |
Tubing, 0.062 OD x 0.010 ID |
 |
Connects the bioACQUITY QSM filter or mixer outlet to the bioSM-DI inject valve. |
|
430002591 |
1 |
Assy, extension loop, 50uL, BIO |
 |
Used to extend the sample injection volume. |
|
|
1 |
Ethernet cable |
 |
Connects ethernet switch to workstation. |
|
|
2 |
Assy, cable, event, 6 foot |
 |
Rear panel event cable. |
|
2 |
Label, 48 well, 2ml vial, open access |
 |
Used to Identify vial positions in MassLynx. |
|
|
700009303 |
1 |
FERRULE, PEEK, 1/16, HPFT, 3PK |
 |
Spare Ferrules |
