200000486 Waters Arc Premier QDa System with CH-A Startup Kit

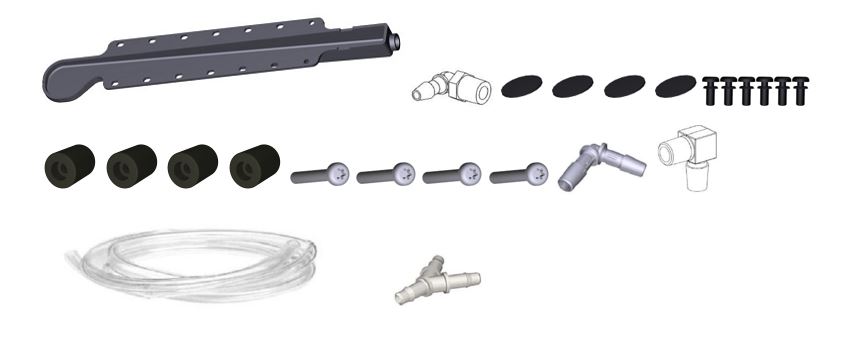

205000355

1

ACQUITY UPLC Multi Det. Drip Tray

Leak management for configurations w/ detectors not on top of column products

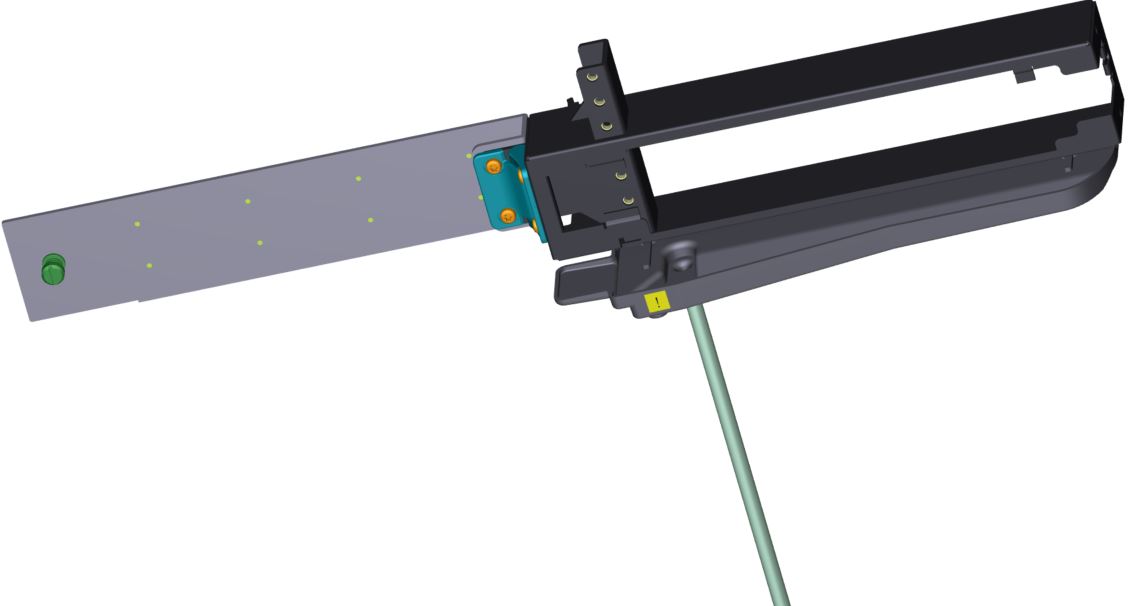

205002283

1

Kit, Extension Arm, HTCH-A, PREMIER

Swings out the CH-A in some configurations

405017393

1

Fitting, 1/8 npt male, female,peek

Used to extend the auxiliary drip tray outlet

410000274

4

Fitting, Litetouch, 0.062 OD, 10-32, peek

Used on PEEK lines

410000423

1

Tubing cutter

Used to trim PEEK tubing to length

410000704

4

Y-connector, barbed, 1/4" id tube

Connects multiple waste tubes together

410004972

4

Fitting, 90 deg elbow, hdpe

Used to cleanly route waste lines

430000377

60”

Tube, peek, 1/16 x 0.007, yellow

Connects detector outlet to QDa probe in Splitter Bypass configuration

700000607

1

Union, ZDV PEEK, .010" hole

Used to extend QDa inlet probe and in Splitter Bypass configurations

700001796

1

Tubing, 0.375 OD X 0.250 ID, tygon, 5FT

Instrument waste lines

700003612

1

Tubing, PEEK, .062OD X .005 ID Red, 60"

Connects column product outlet to detector or splitter
