200000474 Waters LC Stack BSM, SM-FTN, CH-A/CM-A Startup Kit
ENVIRONMENT
- BioAccord System
- ACQUITY PREMIER
- ACQUITY UPLC I-Class PLUS
CONTENT
Waters LC Stack BSM, SM-FTN, CH-A/CM-A Startup Kit, Part Number 200000474
| Part Number | Quantity | Item | Image | Description/Location |
|---|---|---|---|---|
|
|
2 |
BOTTLE CAPS, 4 LTR, 4 PKG |
 |
Bottle caps for reservoir management. |
|
|
2 |
BOTTLE CAPS, 1 LTR, 4 PKG |
 |
Bottle caps for reservoir management. |
|
|
1 |
SYRINGE,PLASTIC, 30 ML |
 |
T
o assist in priming seal wash |
|
|
2 |
HOLDER, 48 WELL, 2ML VIAL |
 |
Holds 2 mL sample vials |
|
405013532 |
1 |
CALIBRATION PIN, RZZ MECHANISM |
 |
Used for orienting sample tray relative to datum base and calibrating position of Needle Carriage. Calibrate Rotary Tray (console needs to be in “Service Mode” to access this function). Pin is stored in designated pocket in door insulation after installation of SM |
|
|
3 |
FERRULE, BACK LOCKING, PEEK, 1/16 |
 |
Spare ferrules for the APH and Column Outlet tubing
|
|
|
1 |
Y-CONNECTOR, BARBED, 1/4" ID TUBE |
 |
To connect Tygon waste tube: BSM to bottle tray to waste |
|
410001380 |
1 |
ADAPTER, FEMALE LUER TO BARBED, .030 ID |
 |
Assists in Priming Seal Wash Outlet Tubing. |
|
180" |
TUBING, .375 OD X .250 ID, TYGON |
 |
System drain tubing |
|
|
|
4 |
TUBING, .156 OD X .031 ID, PHARMED |
 |
Assists in Priming Pump |
|
|
1 |

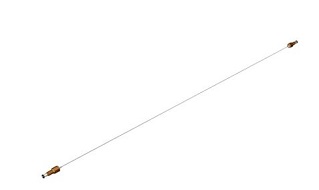

ASSY, TUBE, M/S INLET |
 |
Tubing used to flush the system |
|
|
1 |
ETHERNET PATCH CORD, SHIELDED, 25' L |
 |
To connect I-Class Stack to Host PC |
|
|
2 |
ASSY, CABLE, EVENT, 6 FT. |
 |
Connects BSM I/O Ports to External Devices |
|
605000106 |
1 |
FORCEPS, REINFORCED NYLON |
 |
For handling small parts during servicing of system |
|
|
2 |

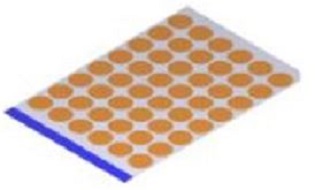

LABEL, 48 WELL, 2ml VIAL, OPEN ACCESS |
 |
Used to Identify vial positions |
